Securitron DEM680E Delayed Egress Electromagnetic Lock | Grade 2 | 1200 lbs Holding Force

Securitron DEM680E Delayed Egress Electromagnetic Lock | Grade 2 | 1200 lbs Holding Force

Highly configurable, strong, easy-to-mount. The latest in delayed egress technology.

Building on the technology of the Securitron EcoMag Series, the DEM680E is a direct replacement for the iMXDA. Designed for applications that require a lock that delays the opening of a door, the DEM680E standard model is HUGS-compliant with specific code compliant models also available. For use on interior and perimeter exit, single, out-swinging doors.

FEATURES

• Autosensing dual voltage with microprocessor technology – no field adjustment required

• Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)

• Instant release circuit – no residual magnetism

• Easily visible LEDs indicate status on secure side of door

• Fully integrated delay and detection features for fast installation of delayed egress system

• Auto calibrated door movement detection up to 1/4" [6.35mm]

• Alarm strobe indicates countdown; stays illuminated post alarm until reset

• Size optimized to work with door closers

• External alarm relay isolated dry contact (1 A at 24 VDC)

• Configurable settings include:

- Nuisance delay times 0, 1, 2, or 3 seconds

- Irrevocable alarm times 15 or 30 seconds

- Bypass delay times 0, 15, 30, 45 seconds

- No irrevocable alarm after bypass expiration

- Post alarm reminder

- Bypass expiration alarm

- Manual/delayed relock

- Unlocked at startup

• Required sign included

Certifications

• UL 294 Listed

• UL 10C Fire Rated 1 hour

• CSFM – California State Fire Marshal approved (DEM680E-CA only)

• CAN/ULC S104 Fire Door Conformant

• NFPA 101

Electrical

Minimum Current

- 95 mA (± 10%) at 12 VDC

- 65 mA (± 10%) at 24 VDC

• Maximum Current

- 520 mA (± 10%) at 12 VDC

- 360 mA (± 10%) at 24 VDC

Holding Force

• 1200 lbs [544kg]

Operating Temperature

• 32˚ to 120˚F [0˚ to 49˚C]

• Indoor use only

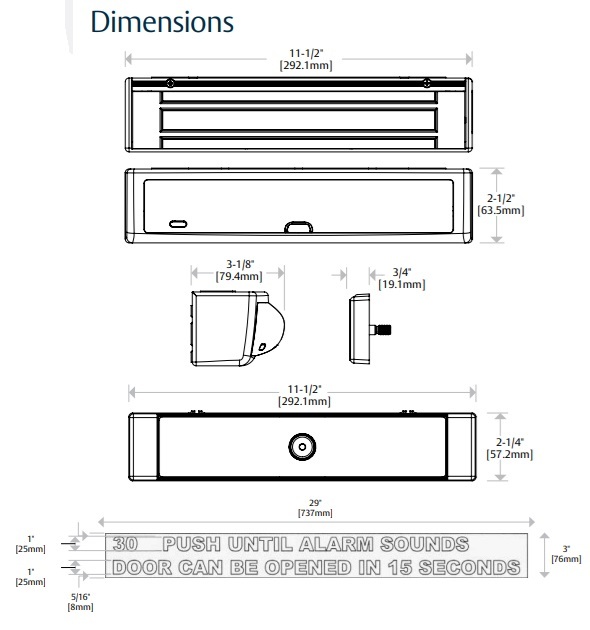

Securitron DEM680E Delayed Egress Electromagnetic Lock Dimensions
