Yale NTM623 | Grade 1 NexTouch Mortise Lock with Touchscreen Keypad and Cylinder Override

Yale NTM623 | Grade 1 NexTouch Mortise Lock with Touchscreen Keypad and Cylinder Override

FUNCTION

No Deadbolt With Cylinder Override

• For doors that require mechanical key override.

• Latchbolt retracted by lever either side, except when outside lever is locked.

• When outside lever is locked, latchbolt is operated by key outside.

• Deadlocking latchbolt.

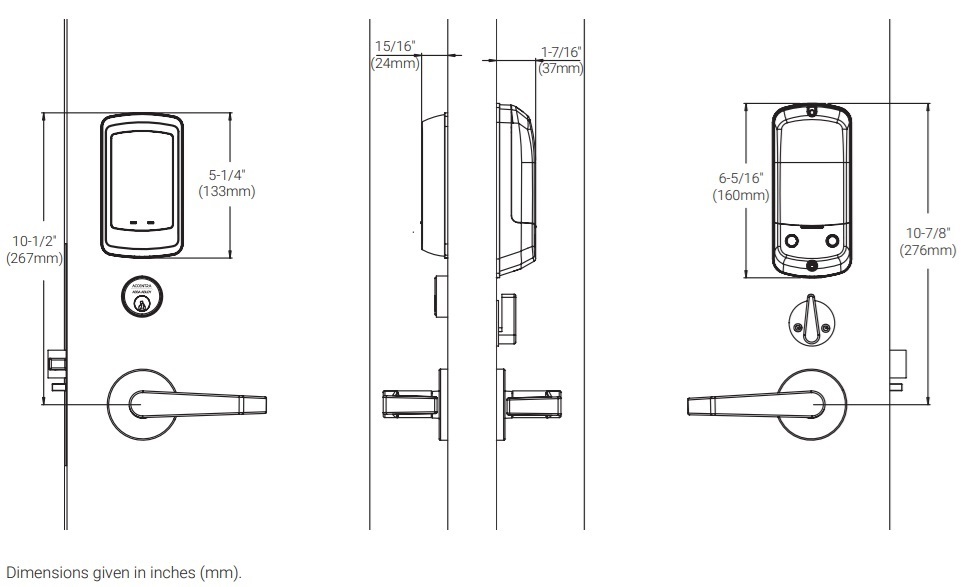

DIMENSIONS

CERTIFICATIONS

ADA

The nexTouch® Series lever design meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities, all requiring ease of accessibility.

ANSI/BHMA

nexTouch® mortise certified ANSI/BHMA A156.13, Series 1000 Grade 1.
