ABH 2100 Electromagnetic Door Holder - Recessed Wall Mount with Standard Armature

No reviews yet Write a Review
Availability:
7-21 Days
Shipping:
Calculated at Checkout
$167.24

Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !

Selected Choose Finish is
Adding to cart… The item has been added
  • Security Image 1
Description

ABH Banner For Resources | View ABH Price List and Other Technical Documents Click Here To View ABH Electromagnetic Door Holders Technical Documents and Cut Sheets



ABH 2100 Electromagnetic Door Holder Features

  • 2-5/8" total projection from wall to face of door (3-5/8" if using complimentary 1" extension)
  • Tri-voltage units for easy stocking and installation 12V DC, 24V AC/DC OR 120V AC
  • Provided with one complimentary 1" extension - No charge
  • Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required
  • 35 lb. holding force
  • All metal components - No plastic parts
  • UL/ULC listed for smoke barrior or labeled fire doors
  • Listed by the California State Fire Marshall
  • Outlet box required (not provided)
  • Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
  • Positive release button alleviates residual magnetism
  • Average with per unit = 2.5 lbs.

ABH 2100 Electromagnetic Door Holder Options (Please call us for these options)

  • "T" - Custom Relay for 2100 "T" Mag Holder - Allows Timed Disconnect and Rese
  •  "SEC" Fasteners
  •  "RS" Rocker Switch
  •  "THICK" Special Door Thickness

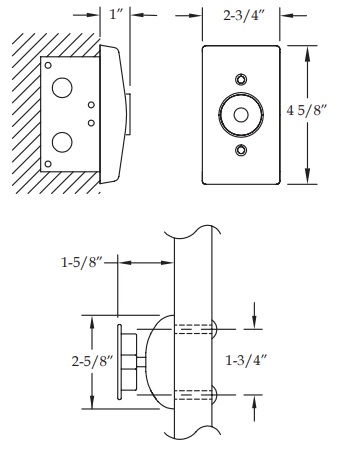

ABH 2100 Electromagnetic Door Holder Dimensions

ABH 2100 Dimensions
