ABH 2400LS Electromagnetic Door Holder - Flush Wall Mount with Extreme Low Profile Armature

ABH 2400LS Electromagnetic Door Holder Features

• 5/8" total projection from wall to face of door
• Tri-voltage units for easy stocking and installation 12V DC, 24V AC/DC OR 120V AC
• Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required
• 35 lb. holding force
• All metal components - No plastic parts
• UL/ULC listed for smoke barrior or labeled fire doors
• Listed by the California State Fire Marshall
• Outlet box required (not provided)
• Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
• Positive release button alleviates residual magnetism
• Average with per unit = 2 lbs

ABH 2400LS Electromagnetic Door Holder Options (Please call us for these options)

• "T" - Custom Relay for 2100 "T" Mag Holder - Allows Timed Disconnect and Rese
•  "SEC" Fasteners
•  "RS" Rocker Switch
•  "THICK" Special Door Thickness

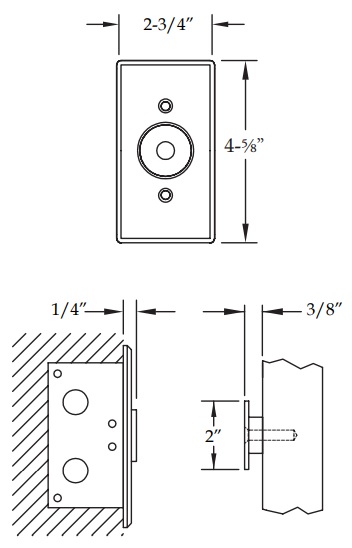

ABH 2400LS Electromagnetic Door Holder Dimensions
