LCN 4040SE | SENTRONIC Series Grade 1 Door Closer

Note: Plated Finishes include a metal cover

LCN 4040SE | SENTRONIC Series Grade 1 Door Closer

The 4040SE Sentronic closer provide a single-point hold-open for fire and smoke barrier doors. The 4040SE Series is UL listed for metal smoke barrier or labeled fire doors and meets ANSI/BHMA A156.15 and NFPA 101 Life Safety Code standards. It is cUL Listed for self-closing doors without hold-open. Choose optional plated finishes and easily integrate with existing fire and life safety systems, minimizing danger to life and property under fire conditions.

The 4040SE Series functions as a full rack-and-pinion closers when the hold-open option is not engaged or the electrical current to the door is interrupted. The single-lever arm is specifically designed for interior doors. The 4040SE Closer is a surface-mounted closer on the pull side hinge pull side or the push side stop face.

Features

Certifications

Grade 1 - ANSI A156.15, UL 10C, 100 hour salt spray, meets BAA - Buy American Act, NFPA 101

Body construction

- Cast iron body

- Full complement bearing

- 1 1 ⁄2" diameter piston

- 3⁄4" diameter double heat treated pinion journal Fluid All weather fluid

Handing

Non-handed

Size

Adjustable spring size, up to 4

Cover

- Plastic, standard

- Metal, optional

Fasteners

Wood and Machine Screws (WMS)

Mounting

Hinge (pull side), stop face (push side)

Arms

Standard Arm and SE track, standard Double Egress Arm and SEL track, optional

Wiring

Concealed or surface, interfaces with fire alarm systems

LCN 4040SE Mounting Details

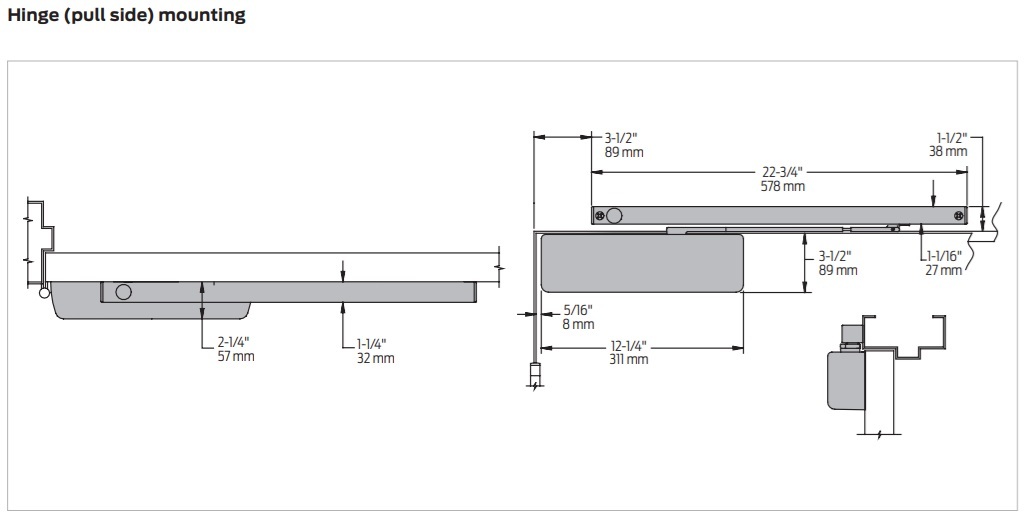

Pull Side Mounting Details

Butt hinges

Should not exceed 5" (127 mm) in width

Swing clear hinges

Contact us

Auxiliary stop

Recommended at hold open point

Reveal

- Should not exceed 1 ⁄8" (3 mm) for Standard Arm

- Should not exceed 2 11⁄16" (68 mm) for Double Egress Arm

Top rail

- Minimum 3 1 ⁄2" (89 mm)

- Installation with plate, 4040SE-18 requires special template and 1 3⁄4" (44 mm) minimum top rail

Head frame

Requires 2" (51 mm) minimum

Flush ceiling

2" (51 mm) head frame does not require special templating

Door width

- 2' 4" (711 mm) minimum for single door with SE

- 4' 8" (1422 mm) minimum for paired doors with SE

Clearance

2 3⁄8" (60 mm) behind door required for 90° installation

Maximum opening

- Templating allows 110°

- Hold open points between 85° and 110° in approximately 3° increments

- Pull side mounting on a Double Egress frame requires a handed Double Egress Arm

- Maximum Hold Open to 95°

- 2 11⁄16" (67 mm) maximum reveal on pull side

- SEL track provides hold open points between 90° and 120°‚ in approximately 3° increments

SE, SEL electrical options

- These track assemblies require a single power circuit for the holding solenoid

- SE or SEL holding solenoid is either 24V or 120V input, please specify

- An optional 4040SE-3210 or 8310-824 transformer reduces 120V AC line voltage to 24V AC

- Circuitry accepts either AC or DC input

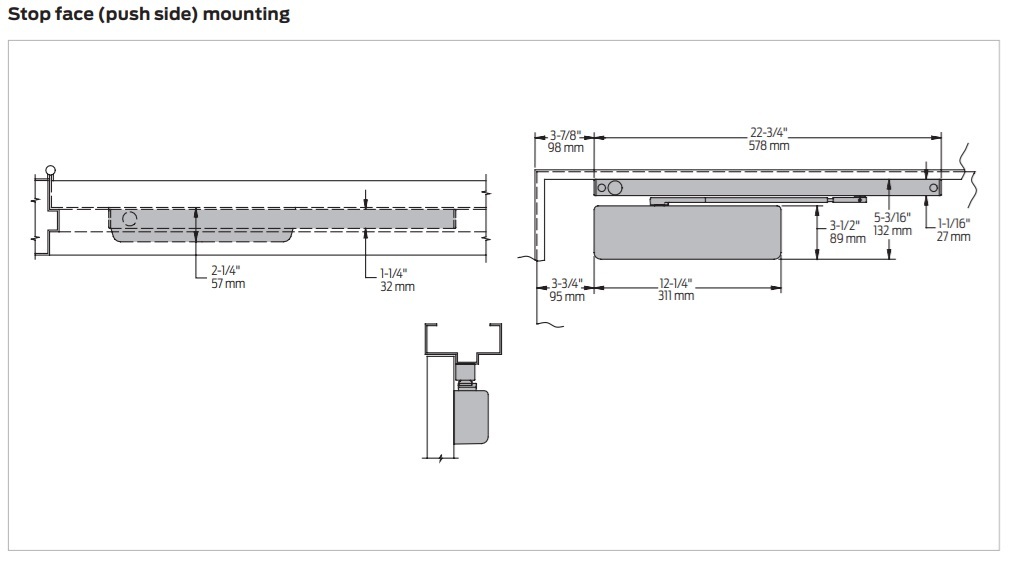

Push Side Mounting Details

Butt hinges

Should not exceed 5" (127 mm) in width

Auxiliary stop

Recommended at hold open point

Top rail

- Minimum 5 3⁄4" (146 mm)

- Installation with plate, 4040SE-18PA requires special template and 2" (51 mm) minimum top rail

Stop width

1 1 ⁄4" (32 mm) minimum

Door width

- 2'4" (711 mm) minimum for single door with SE

- 4'8" (1422 mm) minimum for paired doors with SE

Maximum opening

- Templating allows 110°

- Hold open points between 85° and 110° in approximately 3° increments

- SEL track provides hold open points between 90° and 120°‚ in approximately 3° increments

SE, SEL electrical options

- These track assemblies require a single power circuit for the holding solenoid

- SE or SEL holding solenoid is either 24V or 120V input, please specify

- An optional 4040SE-3210 or 8310-824 transformer reduces 120V AC line voltage to 24V AC

- Circuitry accepts either AC or DC input
