Schlage
Schlage B600 Series | Grade 1 Deadbolt
SKU:
SCH-B600
Shipping:
Calculated at Checkout
$149.81
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
Schlage B600 Series | Grade 1 Deadbolt
The B600 Series is Schlage’s highest grade deadbolt locks. Choose the B600 for Grade 1 security in high-traffic commercial applications.
About Schlage B600 Deadbolt
Schlage’s toughest heavy duty Grade 1 commercial deadbolt. Furnished with conventional cylinder standard. Also available with full size interchangeable core cylinder or small format interchangeable core (SFIC) cylinder. Requires 21 ⁄8" (54mm) prep. UL10B and UL 10C listing standard for auxiliary lock on A label fire doors. Not all functions available as fire rated auxiliary locks. See function charts for required cross bore dimensions.
- The toughest deadbolts in the business
- 1" (25 mm) throw, high-strength steel alloy deadbolt with hardened steel roller resists sawing and kick-in attacks
- Precision-built solid brass 6-pin cylinders with phosphor bronze springs and nickel silver pins ensure long life and
- smooth operation
- Tough nickel silver keys for smooth, long-lasting operation
- Exclusive concealed wood frame reinforcer protects wood jamb against kick-in attacks
- Free-spinning solid cylinder collar resists wrenching and prying
- Large inside Americans with Disabilities Act (ADA) compliant thumbturn makes it easy to throw and retract deadbolt
- Metal shield protects bolt from ice-pick attack through the door
- Hardened steel ball-bearings protect mounting bolts from drill attack
- Meets UL10B and UL10C requirements
Specifications
Handing: Non-handed.
Door thickness: 1 3⁄4" to 2" (44 mm to 51 mm) standard. Available for 1 3⁄8" (35 mm) and doors up to 21 ⁄2" (63mm), assembled to order. Door ranges may vary by function.
Backset: 2 3⁄4" (70 mm) standard, 2 3⁄8" (60 mm), 33⁄4" (95 mm), 5" (127 mm) optional.
Front: Brass, bronze or stainless steel. 11 ⁄8" x 21 ⁄4" (29 mm x 57 mm) square corner, beveled.
Dead bolt: 1" (25 mm) throw with saw-resistant hardened steel insert.
Latch bolt: Brass, 9⁄16" (14 mm) throw, deadlocking on keyed and exterior functions.
Exposed trim: Wrought or forged brass or bronze, or pressure cast zinc.
Thumbturn: Pressure cast zinc, plated to match finish symbols.
Strike: 11 ⁄8" x 2 3⁄4" (32 mm x 70 mm) with steel reinforcer and two 3" screws standard.
Certifications
ANSI: Meets or exceeds A156.36-2010 Grade 1 strength and operational requirements.
UL / cUL: Lock is UL10B Listed auxiliary locks for A label single doors, 4' x 8'.
ADA compliant: Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act

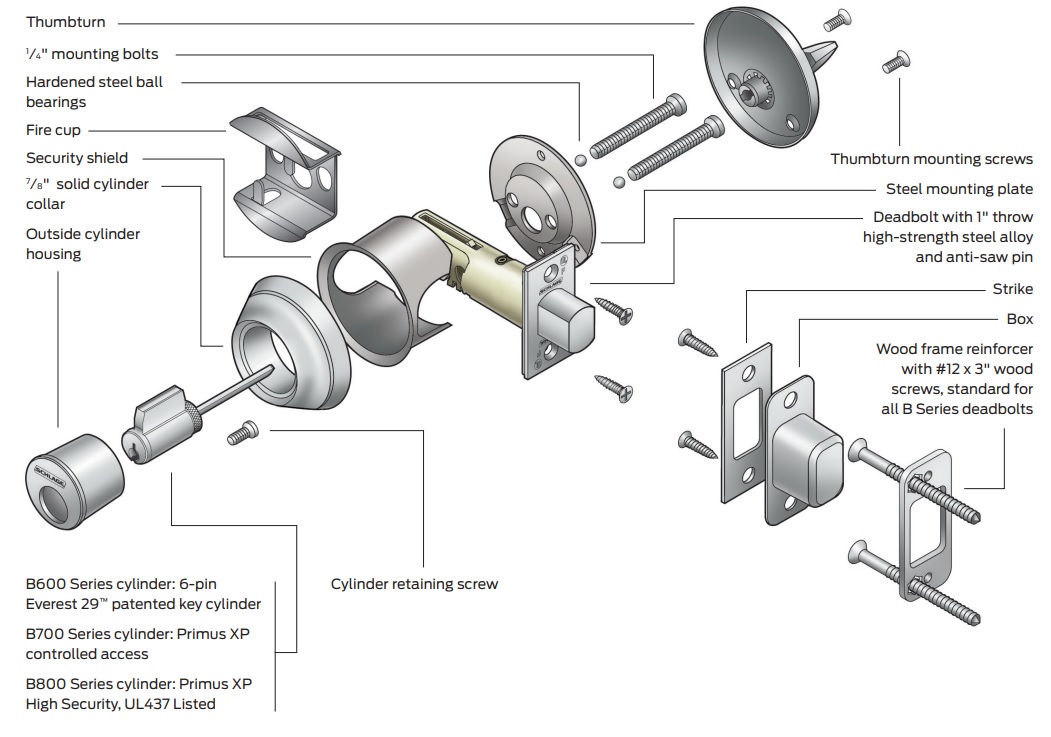

Schlage B600 Exploded View
Additional Information
- Option:Choose Function (What is a lock function? Click here to view our blog detailing lock functions):
- https://blog.locksandsafes.com/2020/07/28/the-definitive-guide-to-lock-functions/
- Option:Choose Finish (Click here to see our Detailed Door Hardware Finish Guide):
- https://blog.locksandsafes.com/2020/07/28/lock-and-door-hardware-finishes/
- Option:Choose Cylinder (What is it? Click link here to see our guide on Cylinders and Keyways):
- https://blog.locksandsafes.com/2021/03/17/lock-cylinder-and-keyway-guide/
