The 27 is a 1-1/2" offset-hung floor closer designed for standard door frame installation for interior or exterior doors weighing up to 450lbs.

APPLICATION

• Single Acting, Handed

• Exterior or Interior Doors

• Weight to 450 lbs. - Door size & weight guidelines are determined using the appropriate number of intermediate pivots

• Door Width up to 4'0" (1219mm)

FEATURES

• 180 top pivot included

• M19 intermediate pivot(s) required (order separately)

• Available non-hold open (N) or selective hold open (S) at same degree as dead stop

• Built-in positive dead stop prevents door from swinging beyond the desired opening degree (specify 85°, 90°, 95°, 105°)

• Separate and independent valves for closing speed, latch speed and backcheck

• Vertical door adjustment

• Available with floor plate or threshold installation (floor plate shown)

• Cycolac, rust-proof cement case

• For arch top doors or applications when the 180 top pivot cannot be used, supply at least two each M190 load-bearing intermediate pivots, mounted together at the top of the straight vertical edge

COMPLIANCE

• Models available to meet ICC/ANSI A117.1 low opening force requirements, prefix “PH”. (For 8-1/2 lbs. of opening force prefix PH and suffix 8-1/2 lbs.)

• For fire rated openings (up to 3 hour assemblies) prefix “F”. This package will be supplied with a F180 steel top pivot and a non-hold open closer. FM19 intermediate pivot required (order separately)

• UL listed closers cannot have PH option

• For 20-minute labeled doors suffix "-20" to the part number (non-hold open closer only)

• ANSI/C06041/C06051

• ANSI/BHMA A156.4, Grade 1

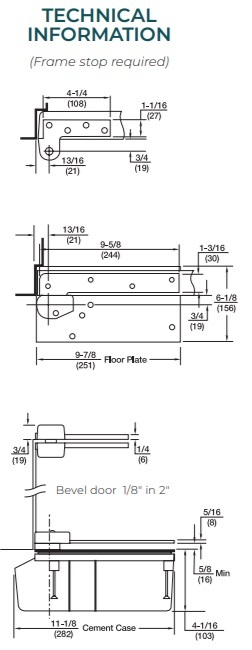

TECHNICAL INFORMATION
