The 50 is a single-acting, center-hung, shallow-depth floor closer designed for standard door frame installation for interior doors up to 250lbs. with moderate traffic.

Note: Center hung closers are not allowed for use on fire rated doors

PRODUCT DETAILS FOR NORTON 50 SERIES FLOOR CLOSERS (See Below for Norton 50x554 Arm Floor Closers)

APPLICATION

• Interior Doors

• Centering Arm

• Weight to 250 lbs.

• Door Sizes up to 4'0" x 8'0" (1219 x 2438mm)

FEATURES

• Single Acting

• Handed

• 340 top pivot included

• Order spring sizes 3 through 5:

- Model 5013: 36" (914mm) Door Width

- Model 5014: 42" (1067mm) Door Width

- Model 5015: 48" (1219mm) Door Width

• Centering arm with adjustment screws in faces of door

• Available non-hold open (NBC) or automatic hold open (ABC) specify 90° or 105°

• Separate and independent valves for closing speed, latch speed and backcheck

• Available with floor plate or threshold installation (floor plate shown)

• Cycolac, rustproof cement case

• Frame stop required at lock edge. If not supplied by frame manufacturer, recommend use of 60131 (see Door Control Accessories Catalog)

• Interchangeable spindle adapters

• Furnished with wood and machine screws

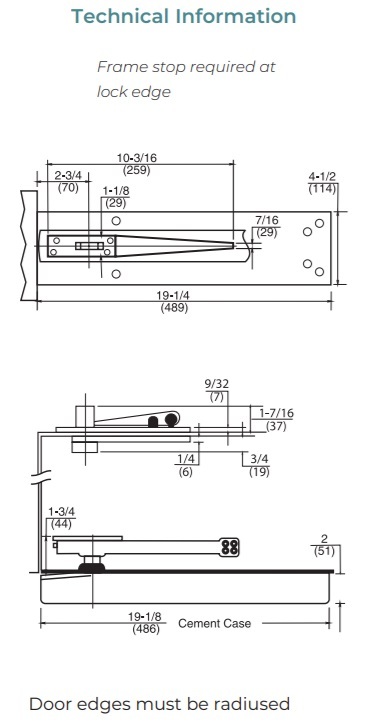

Norton 50 Technical Information

PRODUCT DETAILS FOR NORTON 50x554 ARM FLOOR CLOSER

APPLICATIONS

• Interior Doors

• Concealed Arm

• Weight to 250 lbs.

• Door Sizes up to 4'0" x 8'0" (1219 x 2438mm)

FEATURES

• Single Acting

• Handed

• 340 top pivot included

• Order spring sizes 3 through 5:

- Model 5013x554: 36" (914mm) Door Width

- Model 5014x554: 42" (1067mm) Door Width

- Model 5015x554: 48" (1219mm) Door Width

• Concealed arm is designed to eliminate visible adjusting screws on face of door visible adjusting screws on face of door

• Arm bolt locks arm to closer spindle – adjustment made through heel of door

• Available non-hold open (NBC) or automatic hold open (ABC) specify 90° or 105°

• Separate and independent valves for closing speed, latch speed and backcheck

• Available with floor plate or threshold installation (floor plate shown)

• Cycolac, rustproof cement case

• Frame stop required at lock edge. If not supplied by frame manufacturer, recommend use of 60131 (see Door Control Accessories Catalog)

• Interchangeable spindle adapters

• Furnished with wood and machine screws

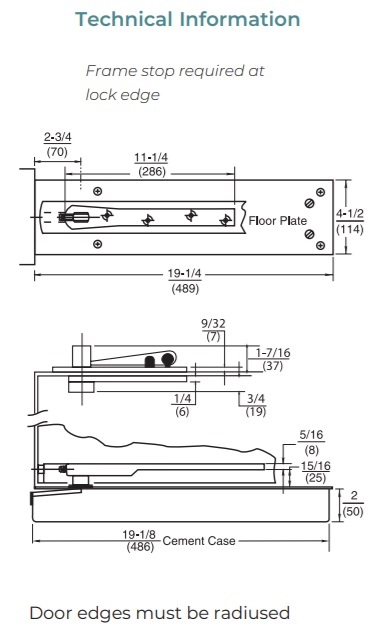

Norton 50x554 Arm Technical Information
