The Norton Rixson 5200 Series is an electromechanical low energy operator offering functionality and control at an affordable price. The 5200 Series converts interior, non-fire rated doors easily and affordably while providing a simple way to achieve touchless environments. Available for push or pull mounting, this unit can be operated manually or activated by wall switches, or radio frequency devices. Complete with WiFi programming for easy installation and setup.

FEATURES

• Push and pull side mounting

• Non-handed

• Activated by push button, hands-free and RF devices

• Maximum door size: 200 lbs. at 48" wide

• Aesthetically pleasing, slim profile

• Modular design

• Adjustable opening force

• Adjustable closing power

• WiFi interface* - No connection to building's WiFi is required

SUPERIOR USER EXPERIENCE

• Operator is a secure, password protected WiFi hot spot - no connection to building’s IT required

• Simple setup; no app required

• View status and make adjustments without removing cover

• Built-in logic to support single use restroom applications - no external relay boards, logic modules, position switches required

SHARED PLATFORM

• Mix and match 6300, 6200 and 5200 Series throughout facility to maximize value to customer

• Shared aesthetics with 6300 and 6200 Series

• Modular installation - one-person install

• Easy set up and adjustments

FUNCTIONS

• Adjustable Hold Open

– Amount of time a door will stay in the full open position after an activation

• Infinite Hold Open

– Door will hold open at set position until power is turned off

• Latch Assist

– At closed position, after an activation, the door is pulled in

– After the door has closed, the door is pulled in to assist with latch release/engagement

• Obstruction Detection

– Open: door closes if it hits an obstruction while opening

– Close: door will reverse to open position if it hits an obstruction while closing

– Close (Selectable - stop on stall): door will stop once it hits an obstruction and will rest against the obstruction until removed

• Open Delay

– Delays operator opening for locking hardware

• Outside Push Button Disable

– When contact is closed, outside push button is disabled

• Power Close

– Additional force to assist door closing between 7° and 2°

• Selector Mode Switch

– Off - Disables signal inputs

– On - Activates signal inputs

– Hold Open - Activates the unit to the hold open position

• Executive

– Units with Executive function (suffix EX) are pre-wired with 707 accessory kit

– Includes integrated receiver and preprogrammed transmitters

– With the door closed: pressing the center button on either remote will open the door to the preset "open" position and hold it there indefinitely

– With the door open: pressing the center button on either remote will close the door to the preset "close" position

Single Use Restroom

– Occupancy Input

  • Disables inside and outside restroom switches

– Restroom Outside Switch

  • In unlocked state, activates operator

  • Disabled by occupancy input; resets to unlocked state when door is opened

– Restroom Inside Switch

  • Activates operator

  • Disabled by occupancy input, while occupancy input switch is closed

ELECTRICAL DATA

• Power input 120 VAC, 3A, 60Hz

• Max current draw 1.5A

• Power output 24VDC @ 0.4A max draw

CERTIFICATIONS

• ANSI/BHMA A156.19 certified

• UL325/991 certified

• Complies with requirements for the Americans with Disabilities Act (A.D.A)

• Manufactured in an ISO 9001 and ISO 14001 certified facility

SPECIFICATIONS

• Door Control (interior) (exterior) closing force shall be adjustable to ensure adequate closing control.

• Door Operator shall simulate conventional door closer opening and closing forces unless the power operator motor is activated.

• Door Operator shall have electronic backcheck to cushion the door speed if door is opened violently. (Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e. wall switch, etc.) (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)]

• Operator shall have selectable power close to provide additional closing force to overcome conditions that may prevent door from latching.

• Unit shall have delay switches for motor activation, electric lock interfacing, and hold open time. Units shall have 24VDC @ 0.4A maximum output for connection of electric strike, lock, radio frequency receiver, etc.

• Unit shall have a three-position Selector Mode Switch that will permit the unit to be switched “ON” to monitor for function inputs, switch to “H/O” for infinite hold open function or switched “OFF” which will disable function inputs allowing unit to be used as a manual door closer.

• Unit shall be U.L. Listed for automatic closing door.

• The Unit shall be adjustable to provide compliance with the requirements of the Americans with Disabilities Act (ADA).

• Unit shall be certified by BHMA to meet A156.19 requirements.

• Unit shall meet UL325/991 standards

NORTON 5200 APPLICATIONS

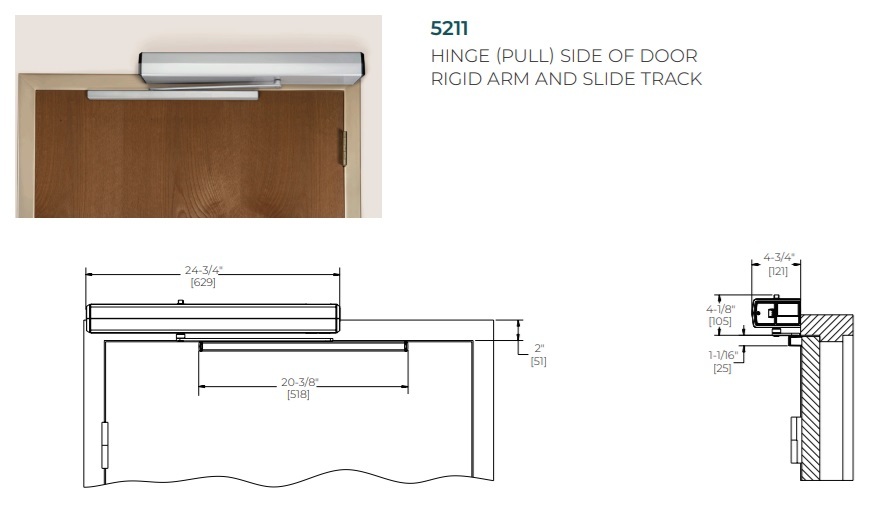

Norton 5211 Details

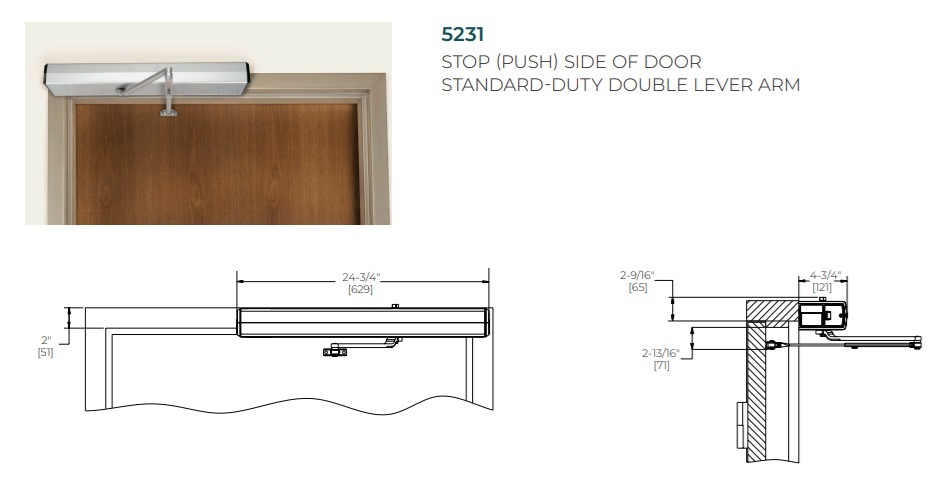

Norton 5231 Details

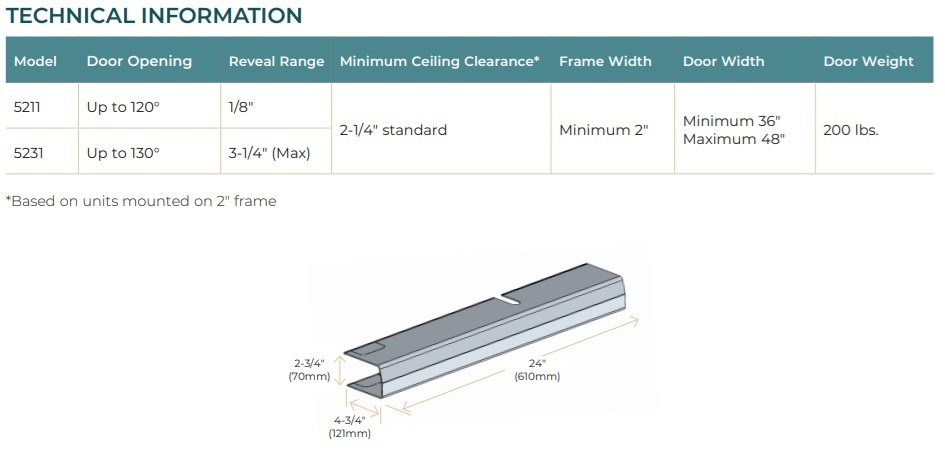

Norton 5200 Technical Details
