Norton 5800 Series Door Mounted Electromechanical Operator | Low Energy Operator
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Norton 5800 Series Door Mounted Electromechanical Operator | Low Energy Operator
As one of the world’s only regenerative power door operators, Norton Rixson’s 5800 Series is certified by GreenCircle® to reduce energy consumption by as much as 100 percent versus other comparable operators. Available in wireless and plug-in versions and able to fit in the tightest of spaces, the 5800 is simple to install and use.
FEATURES
• Regenerative drive or continuous duty operation
• Non-handed
• 95° door opening
• Push and pull side mounting
• Radio frequency stainless steel wall switches
• Integral RF receiver
• Shock absorbing arm
• 24VDC input port
• ADA1015P hardware kit
• Auxiliary activation input port
• Patented auto-tune feature
How does the 5800 Series Pro work without electrical power?
The 5800 Series Pro is an extreme duty, low energy operator designed for moderate to high traffic manual opening applications that occasionally requires powered operation. A regenerative drive system charges an onboard battery pack eliminating the need for electrical power.
The 80/25 guidelines should be applied when ordering this operator. It is recommended that the 5800 Series Pro be used on a door that gets approximately 80 manual cycles or more per day and is used 25% or less automatically. When applied using the 80/25 guideline this operator will self-generate all the power it needs to keep its field replaceable, onboard, battery pack charged for up to 12 years and in some cases longer.
A fully charged battery has the capability to open a door up to 2000 times in a row, generously allowing for periodic fluctuations from 80/25 guidelines with little impact on the product’s overall usability. Example: 30% automatic use for one day is not a problem, as long as that level of automatic use is not sustained.
The 5800 Series Pro can be used outside of the 80/25 parameters. Simply plug the unit into a common 110 VAC electrical outlet using our ADA1015P hardware kit option. The hardware kit is a low voltage plug in transformer and can be added to existing installed field units.
FUNCTIONS
• Adjustable Hold Open
– Amount of time a door will stay in the full open position after an activation
• Dynamic Braking
– Braking or slowing of the door if excessive door speed occurs resulting from a wind load or an abusive open condition
• Emergency Interface Relay*
– Door closes and ignores any activation input until signal is discontinued
• Executive Mode Feature
– When door receives activation signal it opens and remains open until either a second signal is received or door is manually moved in closing direction
• Latch Assist
– At closed position, after an activation, the door is pulled in
– After the door has closed, the door is pulled in to assist with latch release/ engagement
• Obstruction Detection
– Open - door closes if it hits an obstruction while opening
– Close (Stop on Stall) - door will stop once it hits an obstruction and will rest against the obstruction until obstruction is removed
• On/Off Switch
– Disables operator activation
• Open Delay*
– Delays operator opening for locking hardware
• Outside Wall Switch Disable*
– When contact is closed, outside wall switch is disabled
• Power Close
– Additional force to assist door closing between 90° and 70° and 10° and 0°
• Push & Go
– As the door is manually opened, the operator “senses” movement and opens door to the full open position
• Single Relay Output*
– Closes to indicate a valid activation
*Only available with Wireless Interface Module (WIM) ordered separately.
CERTIFICATIONS
• ANSI/BHMA A156.19 certified
• ETL tested to UL/cUL 325 standard for automatic operators
• Complies with requirements for Americans with Disabilities Act (ADA)
• UL10C positive pressure 90 minute
• Manufactured in an ISO 9001 and ISO 14001 certified facility
• Verified by GreenCircle to offer these energy savings as compared to similar products:
– 5800 Series (plug-in) – 91% efficiency
– 5800 Series (wireless) – 100% efficiency
SPECIFICATIONS
• Provide low energy automatic door operator complying with requirements of ANSI A156.19
• Provide an operator with adjustable opening and closing forces that meet the provisions of ANSI A117.1 and the Americans with Disabilities Act
• Provide an operator with a regenerative drive system which charges the on-board battery pack when unit is operated manually and which requires no external electrical power
• Provide an operator that can connect to ANY 24VDC power supply to keep an on-board battery pack fully charged eliminating the need for manual traffic charging. When used with 24VDC input the operator shall supply up to 2000 automatic operations upon loss of building power
• Provide an operator which has been verified by GreenCircle to offer these energy savings as compared to similar products:
– 5800 Series (plug-in) – 91% efficiency
– 5800 Series (wireless) – 100% efficiency
• Provide an operator which, upon installation, will determine door size and weight and automatically tune controller to operate within ANSI A156.19 and A117.1 standards. Operator shall also have the following adjustable functions:
– Opening/closing speed
– Hold-open time
– Close check
– Opening/closing force
• Provide operator with on-board diagnostics which will continually maintain control of door speed in wind or abusive environment conditions
• Provide operator that will continue closing door within ANSI A156.19 and 117.1 requirements without any external power supplied. Upon meeting an obstruction during the opening cycle the door shall remain under power for one second and then close under spring force; if the door meets an obstruction during closing, the door will maintain a closing force of 8 lbs or less
• Provide unit capable of operating doors up to 48" wide, weighing up to 250 lbs
• Provide unit that will operate in climates with temperatures above -40° F and has a two year warranty
• Provide operator with two stainless steel, jamb mounted, wall switch transmitters in choice of 1-3/4" x 4-3/4" narrow, 4-1/2" x 4-1/2" square styles, or 5-1/4" x 511/4" wave-to-open switch style, with required signage. Locate wall switches as directed by architect and within ANSI A156.19 and 117.1 guidelines
• Provide operator which utilizes a triangular hardened steel output shaft to connect arm with a two piece tapered coupling for superior slip resistance
• Provide operator and wall switch transmitter with circuit boards that have been specially coated to resist moisture and humidity making the electronics weather resistant
• Provide operator with integral heavy duty cast aluminum shock absorbing arm, which when fully extended is in full tension eliminating the need for an auxiliary door stop
• Provide operator with two architecturally finished covers and black powder coated frame, arms and mounting brackets
• Black (BHMA 693T)
• Aluminum (BHMA 689)
• Provide an operator incorporating “Push & Go” feature to allow door movement to activate door open cycle or recycle door (PRO PLUS only)
• Provide an operator incorporating “Power Close” feature to utilize the motor to close a door help open by wind, stack pressure or latchbolt (Models 5833, 5813 only)
• Provide an operator incorporating “Latch Assist” feature to apply pulsed power in the closing direction to assist in latching and unlatching of the door
PRODUCT DESCRIPTION
PRO: MODELS 5831 (PUSH), 5811 (PULL)
• No electrical power required
• Moderate to high traffic, manual opening applications that occasionally require automatic operation
• Regenerative drive system charges an onboard battery pack
• Models 5831 and 5811 excel in applications where the traffic pattern allows for 80 door cycles per day, 25% of which are automatic and 75% of which are manual. These models require no electrical connection, no permit, no inspection, no wiring, and no low voltage license. The 5800 Series installs like a manual door closer in less than 1 hour.
PRO PLUS: MODELS 5833 (PUSH), 5813 (PULL)
• 24VDC powered - continuous automatic use
• Connects to ANY 24VDC power supply
• Commercial applications requiring Push & Go, Power Close, and Electric Lock Interface.
• Ideal for openings requiring continuous automatic use or automatic use more than 25% of the time
PRO COMPLETE: MODEL 5845 (PUSH AND PULL)
• Bundles all the configurations of the PRO and PRO PLUS models into one easy to stock package
• Right or left hand doors
• Push and pull side mounting hardware
• Black and aluminum finish covers
• Mounting hardware for virtually any door and frame
• 24VDC plug-in transformer kit for continuous automatic use applications
KITS
Norton 5831 Kit | Norton 5811 Kit

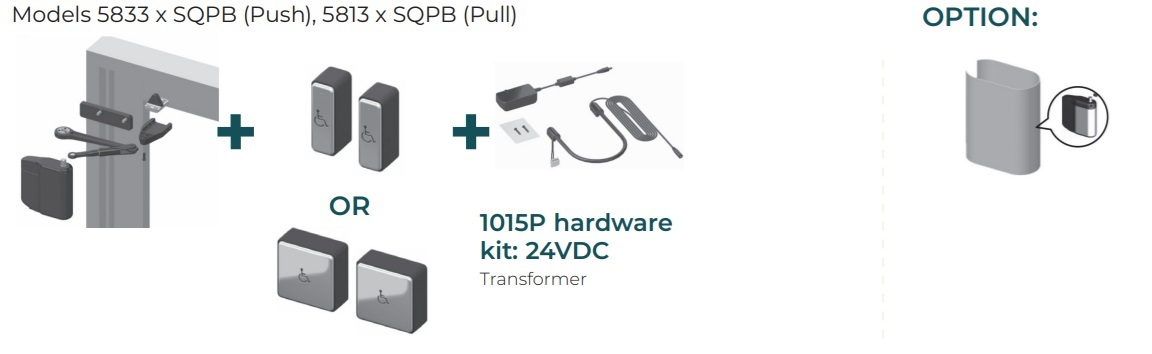

Norton 5813 Kit | Norton 5833 Kit

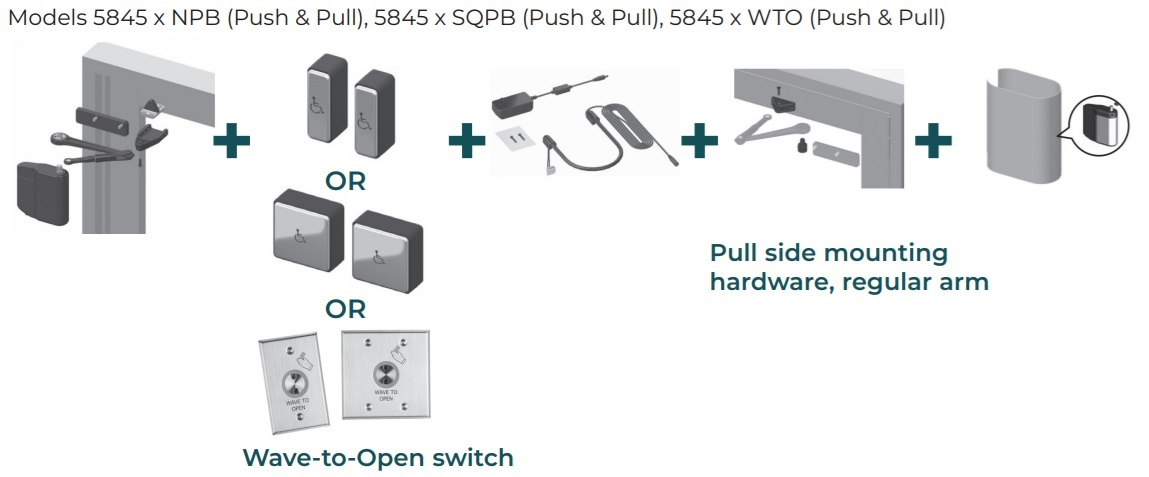

Norton 5845 Kit

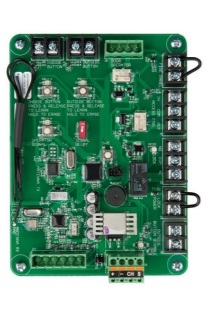

WIRELESS INTERFACE MODULE (ADA1028W)
System Description:
The Wireless Interface Module (WIM) allows the 5800 door operator to interface to 5800 wired or wireless wall switches, wireless remote, an electric lock, fire panel, access control, and an outside wall switch disable contact. The WIM can be used with any 5800 model.
Mounting:
The WIM (4.25” W x 5.75” H) is designed to fit inside a power supply cabinet, using a supplied plastic mounting plate with double sided tape and fasteners.
Inputs:
• Power input: 24VDC
• Hardwire wall switches input: separate INSIDE and an OUTSIDE activation input
• Wireless wall switch input: separate INSIDE and an OUTSIDE RF activation input
• Handheld transmitter input: part # ADA1031 interface
• Operator connection cable: plug-in swing door cable connector interface
• Lock power: dry contact SPDT to power an electric lock
• Outside wall switch disable: privacy feature
Outputs:
• Wireless output: RF signal to activate operator
• Output contacts: SPDT dry contact output for AUX signal
• Lock contacts: SPDT dry contact output for LOCK
• Access control contacts: indicates valid unlock signal
• Signal delay timer: 1.5 second lock release delay
• Emergency interface relay (EIR): disables signal inputs
Codes/Listings:
• UL 325 standard for automatic operators
• FCC 47CFR 15C and RSS 210
Norton 5819 Trash Room Door Kit | Norton 5839 Trash Room Door Kit
TECHNICAL INFORMATION

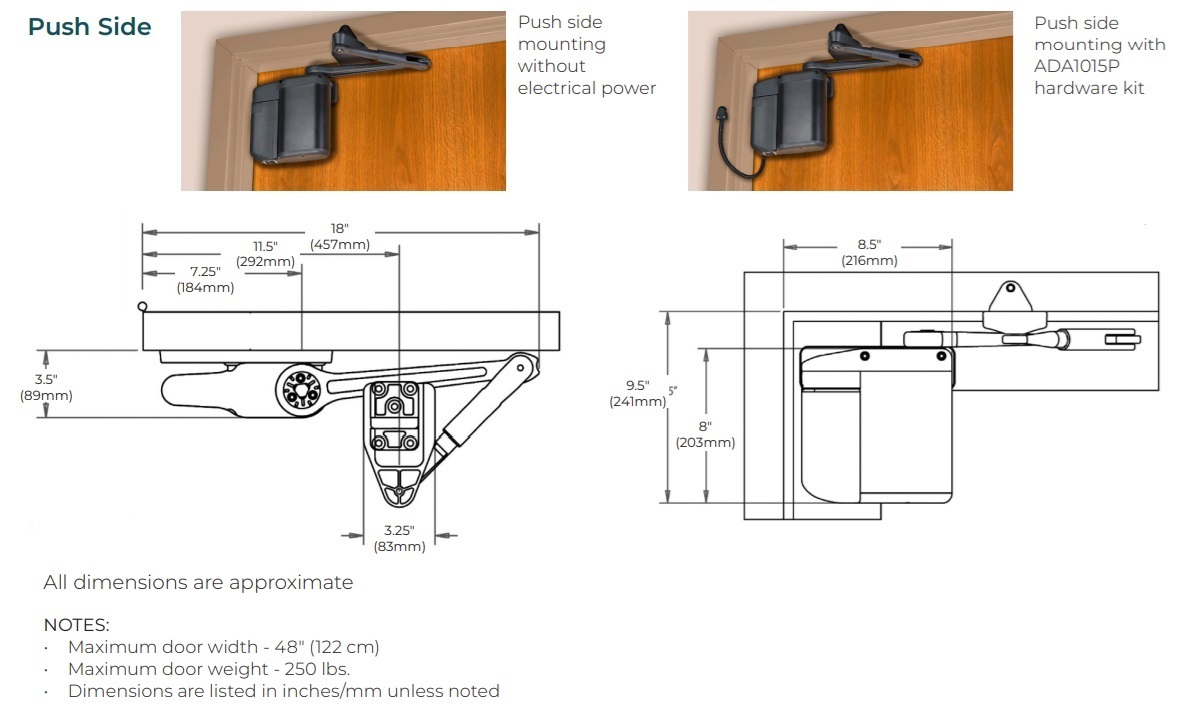

Norton 5800 Push Side Technical Information

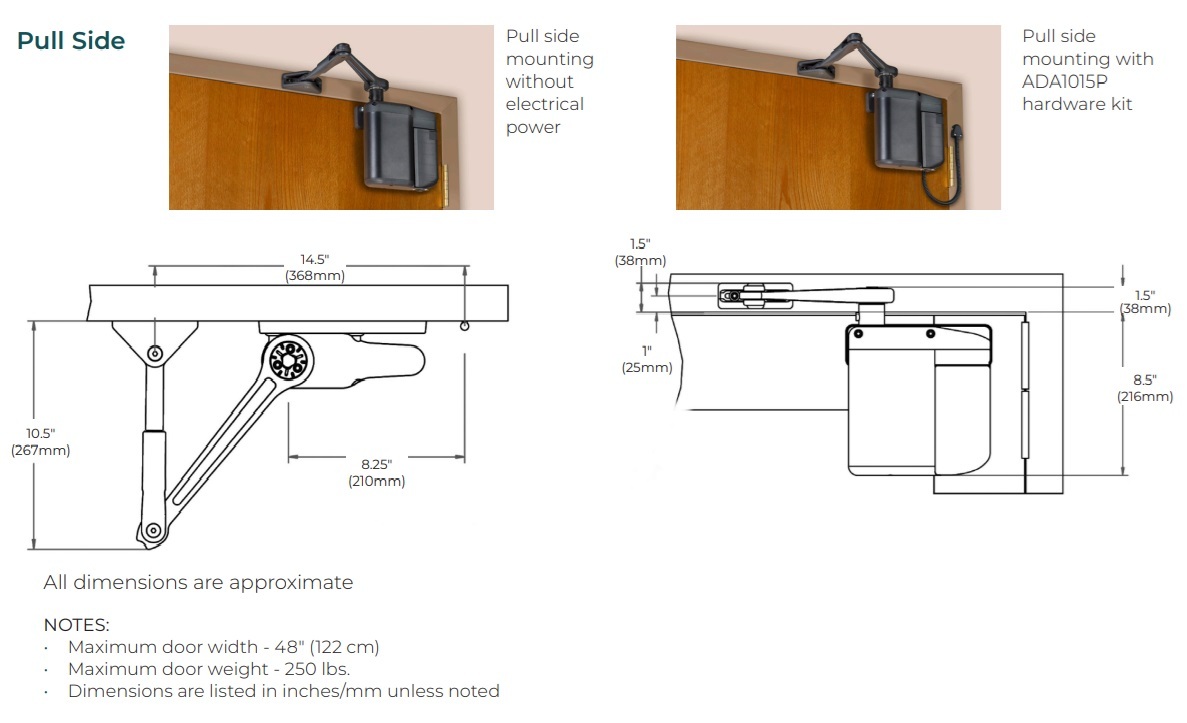

Norton 5800 Pull Side Technical Information

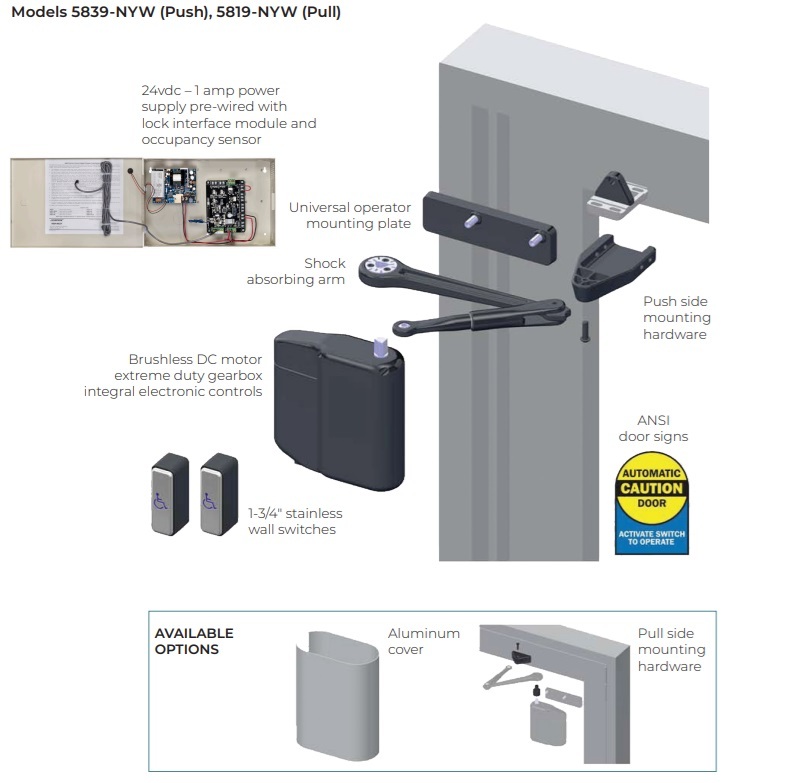

Norton 5839 | Norton 5819 | Trash Room Door Operator Technical Information

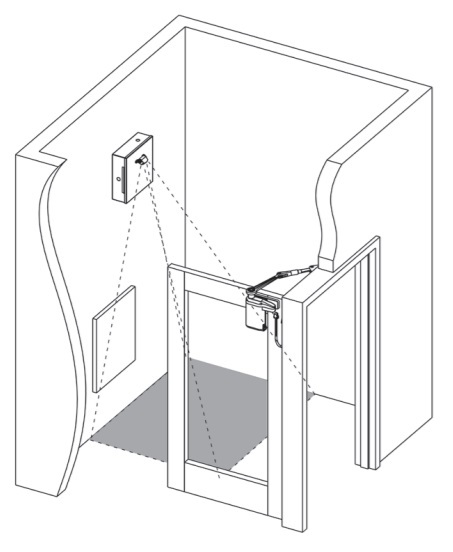

Models 5839 and 5819 were designed to meet a New York City building code that required trash room doors be equipped with automated doors to make them more accessible to disabled persons. These models include an occupancy sensor to keep the door open while the room is in use and a power close feature to ensure the door closes and re-latches.
FEATURES
• Continuous duty operation
• Non-handed
• 95° door opening
• Push or pull side mounting
• Occupancy sensor
• Electric lock interface module
• Shock absorbing arm
• Black cover (standard); aluminum cover (optional)
• 24 VDC input port
• Built-in on/off switch
• Auxiliary activation input port
APPLICATIONS
• Trash rooms in high rise buildings
INCLUDED IN PACKAGE*
• Operator
• Mounting hardware
• 24VDC 1 amp power supply
• Occupancy sensor
• Armored door cord
• (2) 1-3/4" surface mounted, stainless, hardwired wall switches
• 20 feet of operator power and signal wire
* Electric lock not included
BENEFITS
Easy to Install
• Occupancy sensor keeps door open while room is in use
• Optional power close ensures consistent door latching
Flexible
• Controls doors up to 48” wide and 250 lbs in weight
• Acts like a manual door closer
Dependable
• Grade 1 - heavy-duty, commercial design
• Brushless DC motor/gearbox tested in excess of 10 million cycles
• Optional dynamic and back check braking for abusive environments
Norton 5819 | Norton 5839 KIT
