The 6200 Series is a cost-effective low energy operator offering intelligent functions, such as power close, latch assist and obstruction detection. Specifically designed for high traffic applications requiring a narrow profile to blend more seamlessly with the frame while fitting challenging applications with minimal overhead space. Complete with electric lock interface, touchless activation support, and mobile device WiFi programming for easy installation and setup.

FEATURES

• Push and pull side mounting

• Non-handed

• Activated by wall switch, hands-free and RF devices

• Maximum door size: 200 lbs. at 48" wide

• Aesthetically pleasing, slim profile

• Modular design

• Adjustable opening force

• Adjustable closing power

• WiFi interface - No connection to building's WiFi is required

SUPERIOR USER EXPERIENCE

• Operator is a secure, password protected WiFi hot spot - no connection to building’s IT required

• Simple setup; no app required

• View status and make adjustments without removing cover

• Built-in logic to support single use restroom applications - no external relay boards, logic modules, position switches required

SHARED PLATFORM

• Mix and match 6300, 6200 and 5200 Series throughout facility to maximize value to customer

• Shared aesthetics with 6300 and 6200 Series

• Modular installation - one-person install

• Easy set up and adjustments

FUNCTIONS

• Adjustable Hold Open

– Amount of time a door will stay in the full open position after an activation

• Emergency Interface Relay (fire panel input)

– Door closes and ignores any activation input until signal is discontinued

• Infinite Hold Open

– Door will hold open at set position until power is turned off

• Latch Assist

– At closed position, after an activation, the door is pulled in

– After the door has closed, the door is pulled in to assist with latch release/engagement

• Obstruction Detection

– Open: door closes if it hits an obstruction while opening

– Close: door will reverse to open position if it hits an obstruction while closing

– Close (Selectable - stop on stall): door will stop once it hits an obstruction and will rest against the obstruction until removed

• Open Delay

– Delays operator opening for locking hardware

• Outside Wall Switch Disable

– When contact is closed, outside wall switch is disabled

• Power Assist

– Senses the door is being opened manually and applies small amount of power to assist user in opening the door with force less than 5 lbs.

– Door opens only as far as it is moved manually, then closes once released

• Power Close

– Additional force to assist door closing between 7° and 2°

• Presence Detector Input

– Input for external sensor to detect presence at door open or close position only

• Push & Go

– As the door is manually opened, the operator "senses" movement and opens door to the full-open position

• Selector Mode Switch

– Off - Disables signal inputs unless Blow Open is activated

– On - Activates signal inputs

– Hold Open - Activates the unit (unless blow closed is activated on 6300) to the hold open position

• Single Use Restroom

– Occupancy Input: Disables inside and outside restroom switches

– Restroom Outside Switch: In unlocked state, activates operator, Disabled by occupancy input; resets to unlocked state when door is opened

– Restroom Inside Switch: Activates operator, Disabled by occupancy input, while occupancy input switch is closed

ELECTRICAL DATA

Power input 120 VAC, 3A, 60Hz

• Current draw 1.5A

• Power output 24VDC @ 0.4 A max draw (less accessories)

CERTIFICATIONS

• ANSI/BHMA A156.19 certified

• UL325/991 certified

• UL10C positive pressure up to 3 hours

• Complies with requirements for the Americans with Disabilities Act (A.D.A)

• Manufactured in an ISO 9001 and ISO 14001 certified facility

SPECIFICATIONS

• Door Control (interior) (exterior) closing force shall be adjustable to ensure adequate closing control.

• Door Operator shall simulate conventional door closer opening and closing forces unless the power operator motor is activated.

• Door Operator shall have electronic backcheck to cushion the door speed if door is opened violently. [(Door Operator shall be AUTOMATICALLY ACTIVATED by either a slight push or pull in the direction of opening swing - Push & Go.) (Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e. wall switch, etc.) (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)]

• Operator shall have selectable latch boost to provide additional closing force to overcome conditions that may prevent door from latching.

• Unit shall have delay switches for motor activation, electric lock interfacing, and hold open time.

• Units shall interface with latch retraction exit devices or similar products and have 24VDC @ 1.3A maximum (less accessories) output for connection of electric strike, lock, radio frequency receiver, etc.

• Unit shall have a three-position Selector Mode Switch that will permit the unit to be switched “ON” to monitor for function inputs, switch to “H/O” for infinite hold open function or switched “OFF” which will disable function inputs allowing unit to be used as a manual door closer.

• Unit shall be U.L. Listed for automatic closing door.

• The Unit shall be adjustable to provide compliance with the requirements of the Americans with Disabilities Act (ADA). Unit shall be certified by BHMA to meet A156.19 requirements.

• Unit shall meet UL325/991, UL10C standards.

NORTON 6200 APPLICATIONS

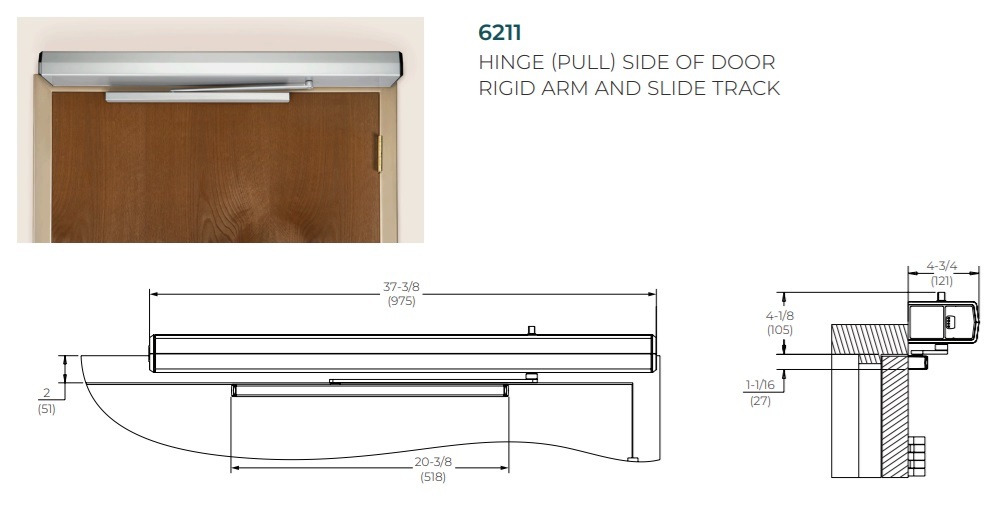

Norton 6211 Details

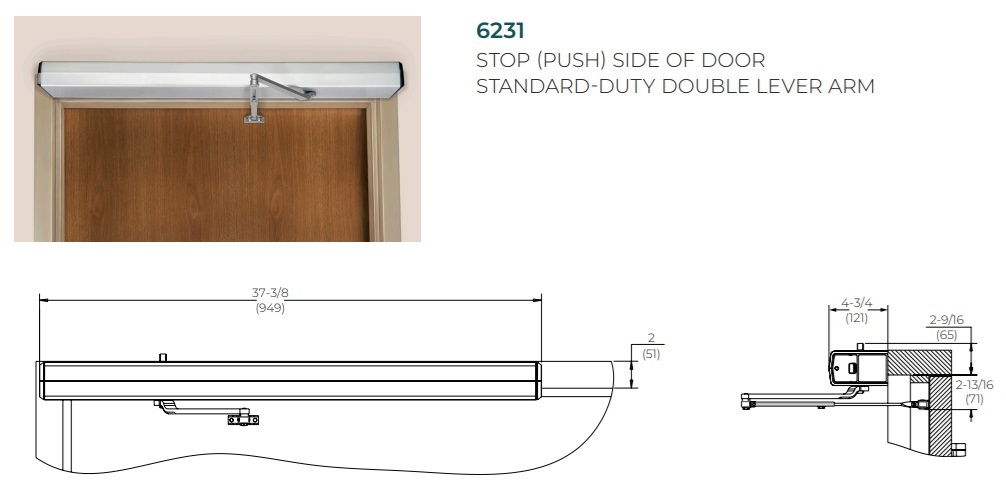

Norton 6231 Details
