Norton 7500 Slide Track Door Closer | Grade 1 Door Closer Size 1 to 6

Norton 7500 Slide Track Door Closer | Grade 1 Door Closer Size 1 to 6

FEATURES

• Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting

• Non-handed

• Rack-and-pinion design

• Cast aluminum body

• Adjustable spring sizes 1-6

• Door weight: 250 lbs.

• 2-1/8" (54mm) projection

• 1-1/2" (38mm) diameter piston

• 5/8" (16mm) diameter pinion journals

• Standard, separate and independent, latch, sweep and backcheck intensity valves

• Backcheck positioning

• Staked valves

• Retrofit plates

• NorGlide® fluid

• Molded plastic cover

• All standard arm applications allow doors to swing 180°, conditions permitting

• Self-drilling screws

• Full-size template

CERTIFICATIONS

• ANSI/BHMA A156.4, Grade 1

• ANSI/BHMA A117.1

• Americans with Disabilities Act (ADA) Compliant

• Environmental Product Declaration (EPD)

• Health Product Declaration (HPD)

• GreenCircle Environmental facts

• UL10C positive pressure up to 3 hours

• UL-cUL listed

• Manufactured in an ISO9001, ISO14001 facility

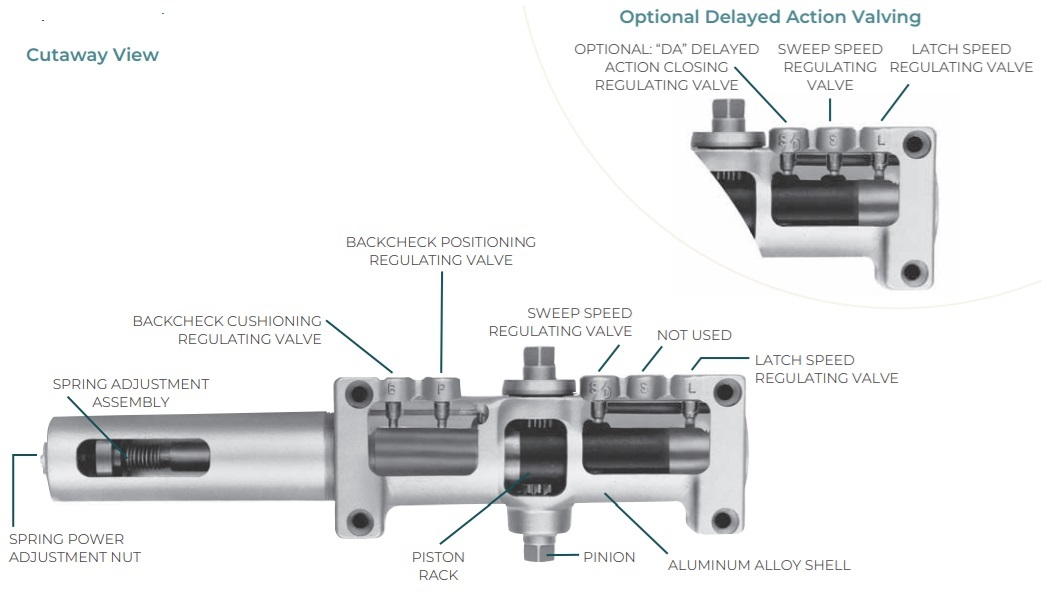

Norton 7500 Door Closer Cutaway View

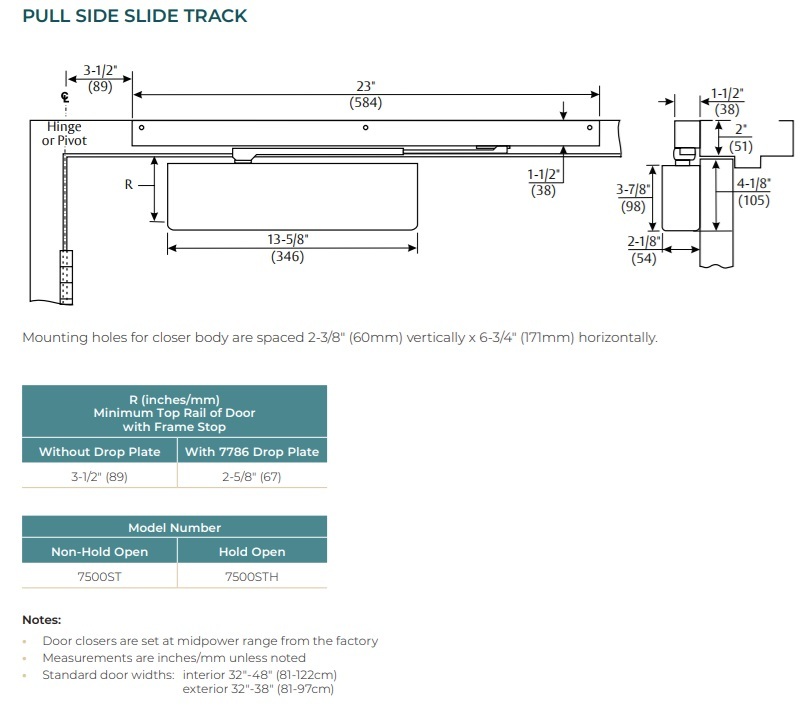

Norton 7500 Door Closer Pull Side Slide Track Arm

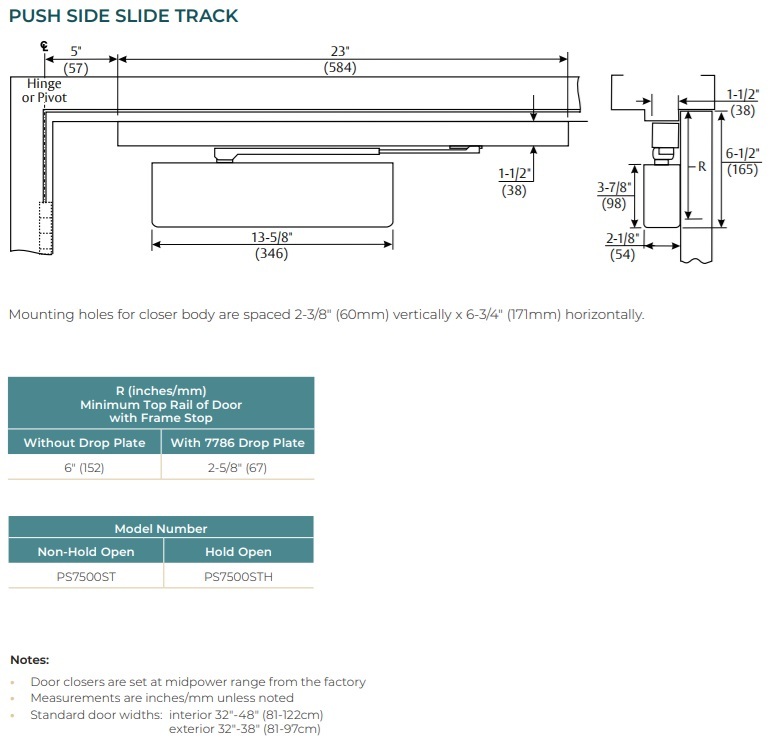

Norton 7500 Door Closer Push Side Slide Track Arm

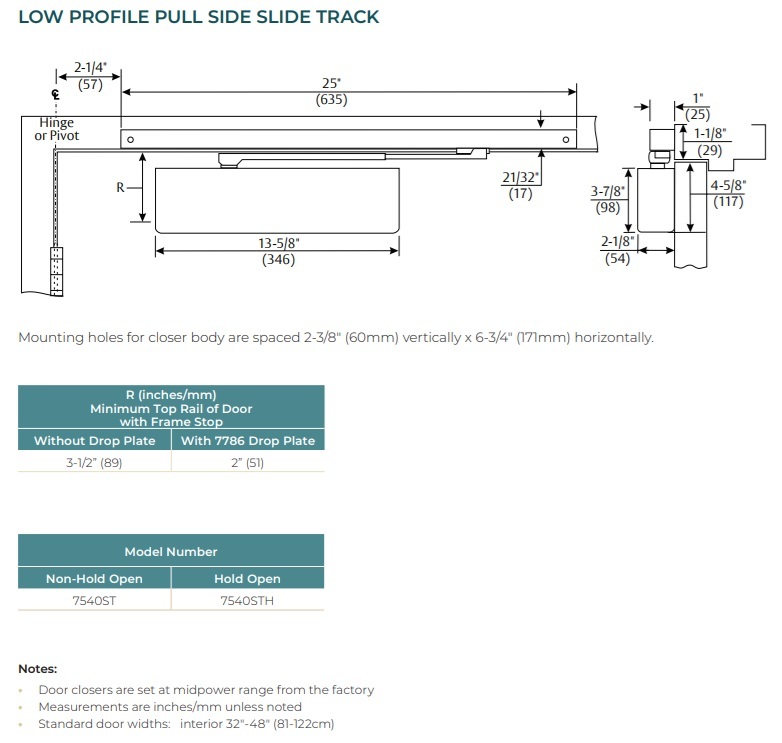

Norton 7500 Door Closer Low Profile Pull Side Slide Track Arm

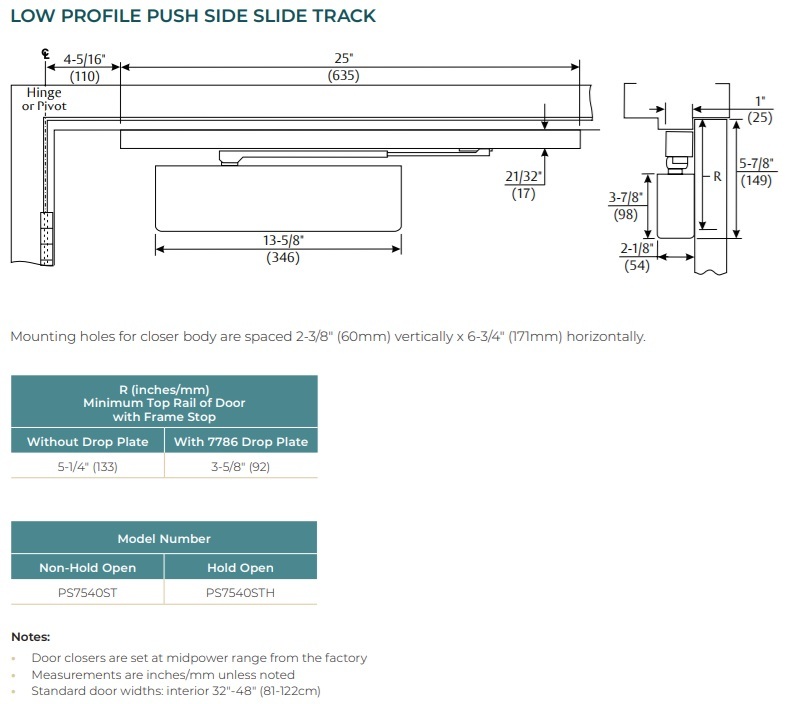

Norton 7500 Door Closer Low Profile Push Side Slide Track Arm
