Norton 7570 Slide Track Door Closer | 7570 Series Grade 1 Door Closer

Norton 7570 Slide Track Door Closer | 7570 Series Grade 1 Door Closer

7570 Series are high security closers designed to withstand maximum abuse, deter tampering and help protect doors, walls and hardware. Available with a large number of arm and track assemblies, the 7570 Series closers are capable of providing a high level of reliable performance for a wide variety of openings. Schools, government buildings, financial institutions, industrial facilities, and prisons and detention centers are ideal applications for this closer.

FEATURES

• Adjustable spring sizes 1 through 6

• Security arms – joints feature permanent, orbital riveted elbow and arm shoe/soffit plate joints which prevent disassembly

• Adjustable backcheck cushioning and positioning

• Door weight: 250 lbs.

• Torx drive machine screws with security pin

CERTIFICATIONS

• ANSI/BHMA A156.4, Grade 1

• ANSI/BHMA A117.1

• Americans with Disabilities Act (ADA) Compliant

• MEA - City of New York Approved

• UL10C positive pressure up to 3 hours

• UL-cUL listed

• Manufactured in an ISO 9001, ISO 14001 facility

Norton 7570 Closer Detailed View

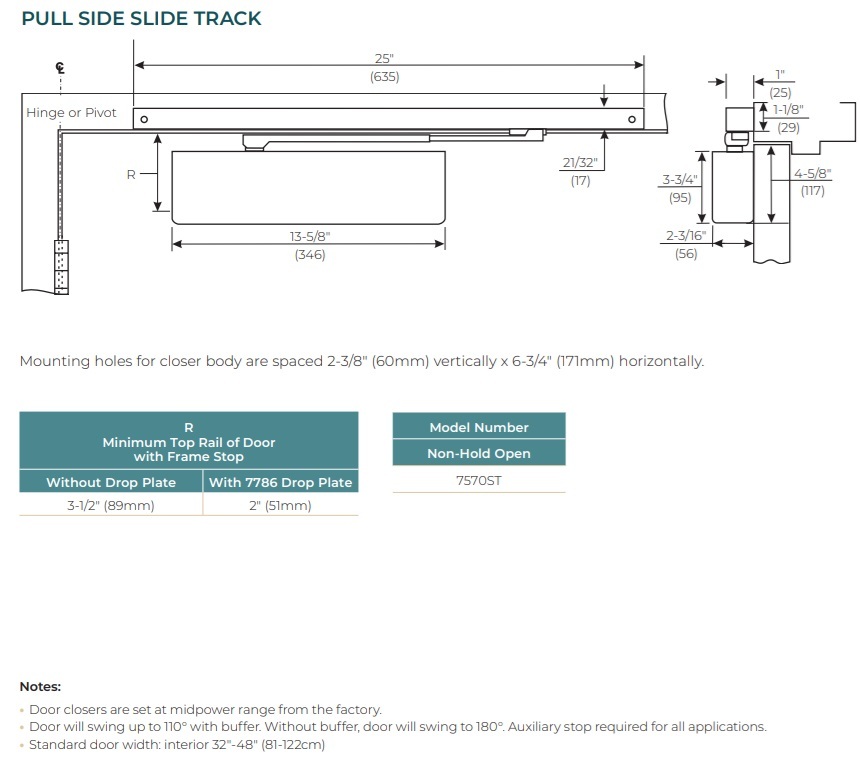

Norton 7570ST Pull Side Slide Track Door Closer Details

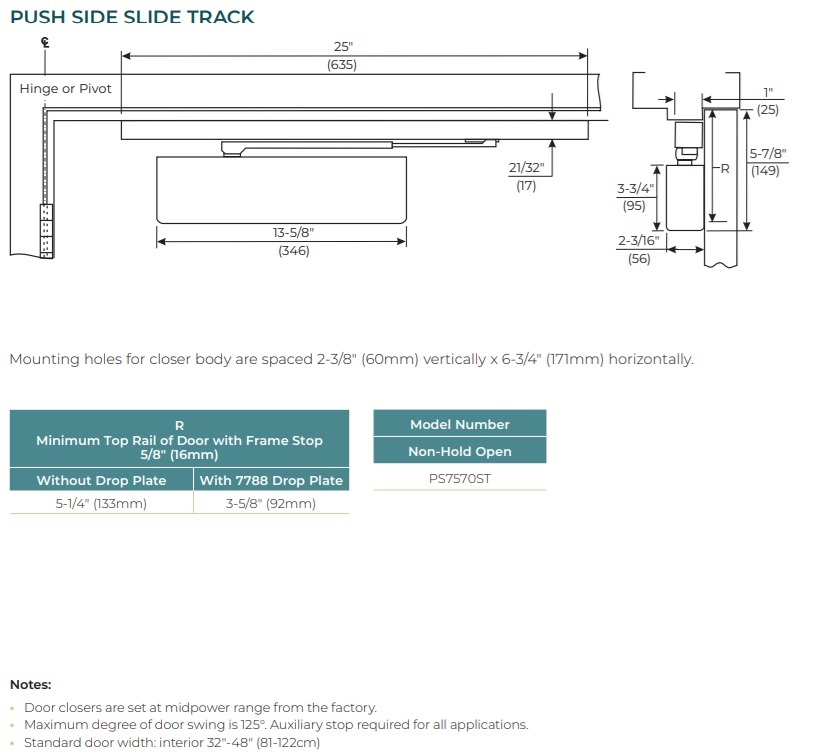

Norton PS7570ST Push Side Slide Track Door Closer Details
