Norton 8301 Slide Track Door Closer with Slim Line Cover | Grade 1 Door Closer, Size 1 to 6

Norton 8301 Slide Track Door Closer with Slim Line Cover | Grade 1 Door Closer, Size 1 to 6

FEATURES

• Exceeds 25 million cycles

• Adjustable spring sizes 1 through 6

• Door weight: 250 lbs.

• Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting)

• Non-handed

• Staked valves

• Cast aluminum closer body

• Rack and pinion design

• 1-1/4" (32mm) diameter piston

• 5/8" (16mm) diameter pinion journals

• 2-1/8" (54mm) projection (standard covers)

• All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting

• Full size template

• Standard, separate and independent, latch, sweep and back check intensity valves

• Application specific arms: Regular (S), Top Jamb (JS) and Parallel (P)

• Heavy-duty arms; Parallel Rigid

• Lead lined metal cover - suffix MLL

• Metal, architectural plastic or architectural metal covers (8501 only)

• Delayed action

CERTIFICATIONS

• ANSI/BHMA A156.4, Grade 1

• ANSI/BHMA A117.1

• Americans with Disabilities Act (ADA) Compliant

• Environmental Product Declaration (EPD)

• UL10C positive pressure up to 3 hours

• UL-cUL listed

• Manufactured in an ISO 9001, ISO 14001 facility

Norton 8300 Door Closer Cutaway View

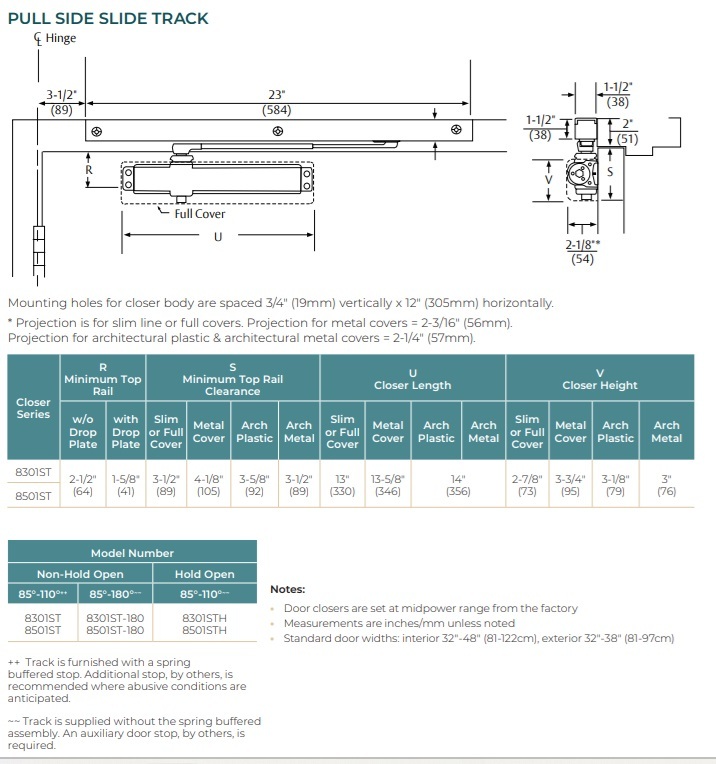

Norton Pull Side Slide Track Door Closer

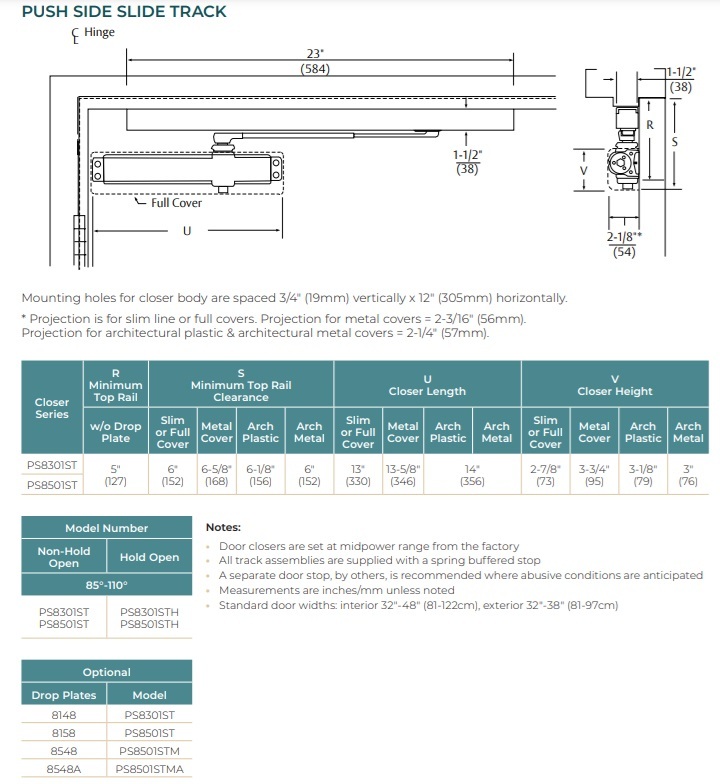

Norton Push Side Slide Track Door Closer

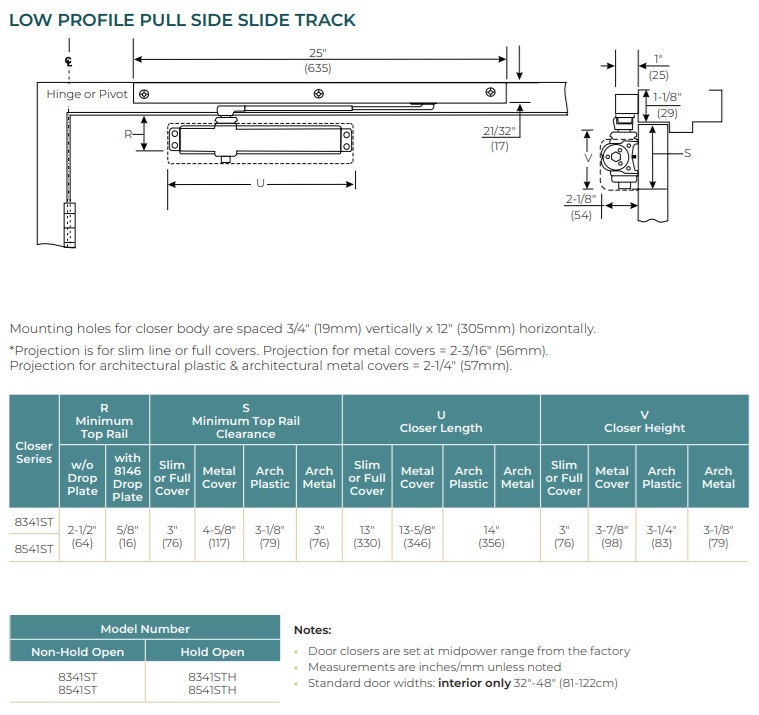

Norton Low Profile Pull Side Slide Track Door Closer

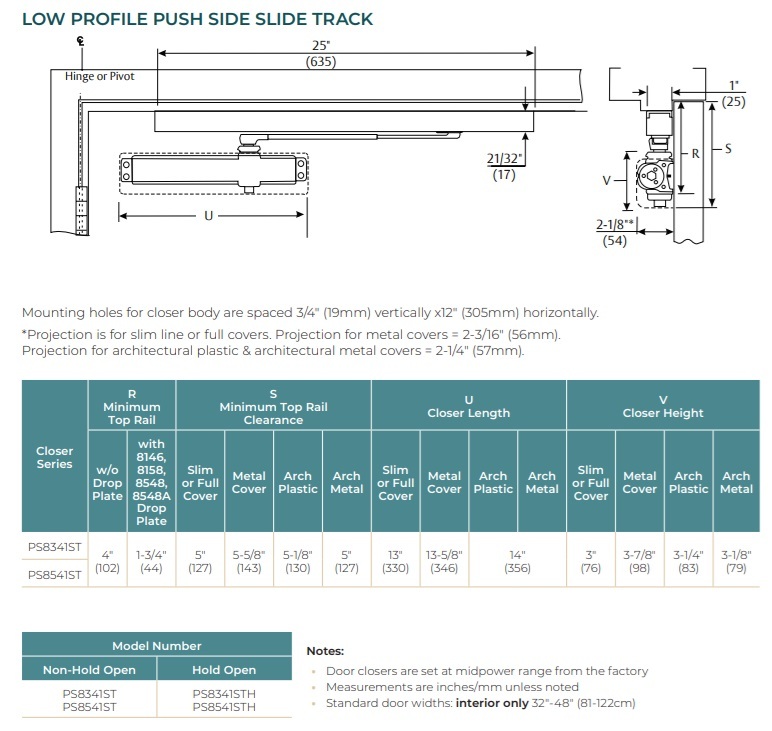

Norton Low Profile Push Side Slide Track Door Closer
