Norton 9500 Tri-Packed: Regular, Parallel or Top Jamb Door Closer | Grade 1 Door Closer, Size 1 to 6 | Cast Iron Door Closer

Norton 9500 Tri-Packed: Regular, Parallel or Top Jamb Door Closer | Grade 1 Door Closer, Size 1 to 6 | Cast Iron Door Closer

FEATURES

• Cast iron closer body

• Non-handed

• Rack-and-pinion design

• Standard, separate and independent, latch, sweep and backcheck intensity valves

• Pressure relief valves for both opening and closing cycles protect the door and frame from damage and reduces maintenance costs

• Staked valves

• 2-1/4" (57mm) projection

• 1-1/2" (38mm) diameter piston

• 5/8" (16mm) diameter pinion journals

• Closer mounting plate for easy installation

• Tri-style® packaging: packed for regular, top jamb or parallel arm mounting

• Adjustable spring sizes 1-6

• Door weight: 250 lbs.

• Molded ABS plastic cover

• All standard arm applications allow doors to swing 180°, conditions permitting

• Exceeds 25 million cycles

CERTIFICATIONS

• ANSI/BHMA A156.4, Grade 1

• ANSI/BHMA A117.1

• Americans with Disabilities Act (ADA) Compliant

• Environmental Product Declaration (EPD)

• GreenCircle certified environmental facts

• UL10C positive pressure up to 3 hours

• UL-cUL listed

• Manufactured in an ISO 9001, ISO 14001 facility

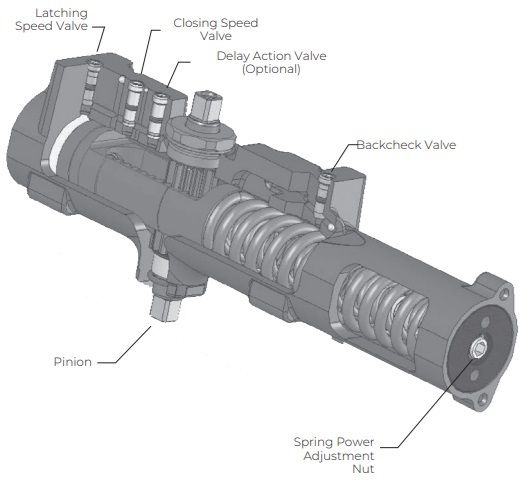

Norton 9500 Door Closer Cutaway View

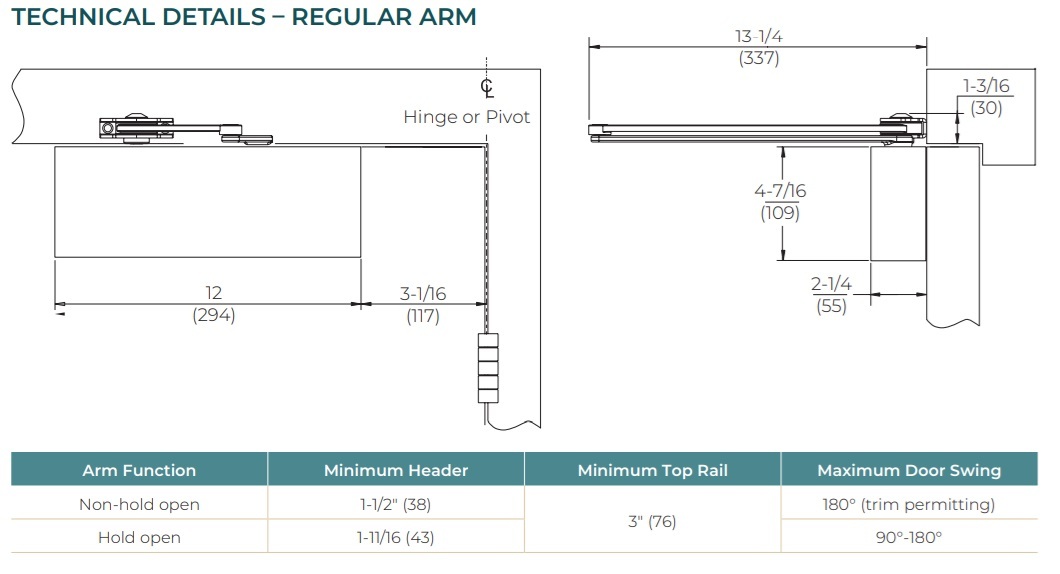

Norton 9500 Regular Arm Door Closer Details

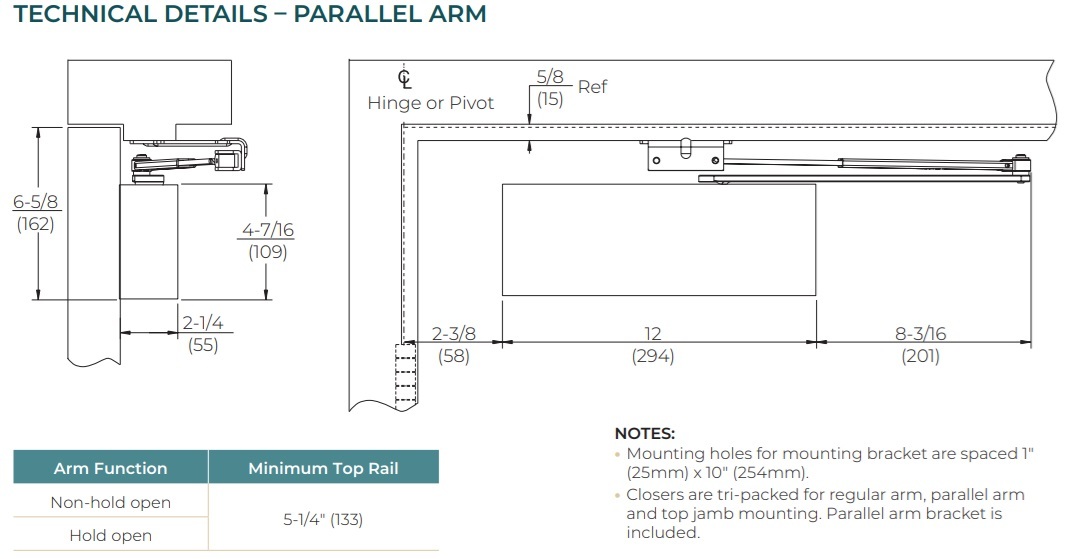

Norton 9500 Parallel Arm Closer Details

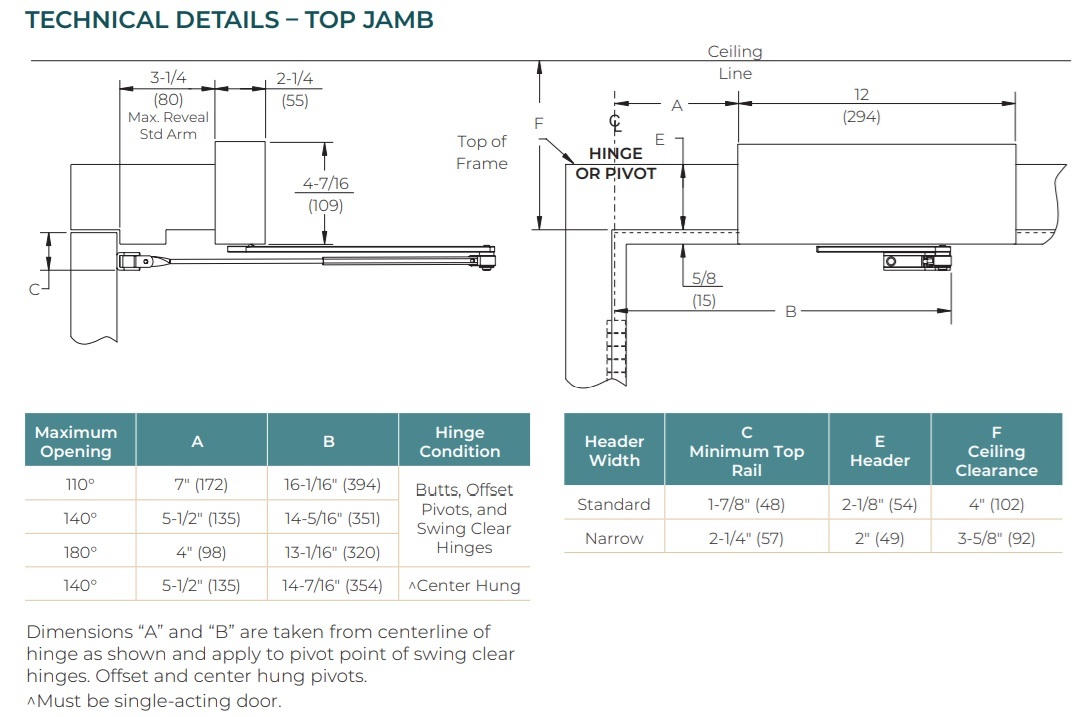

Norton 9500 Top Jamb Door Closer Details

Cross Reference Chart

Note: No products are exactly alike. This cross reference represents our judgement of products that are most similar. Information has been obtained from trade sources. It is not represented nor guaranteed that any product exactly equals any other products.
