Norton EH28 Series Single Acting Center Hung Door Closer | Norton Power Transfer Floor Closer

No reviews yet Write a Review
SKU:
NORTON-EH28
Shipping:
Calculated at Checkout
$3,512.61

Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !

Selected Choose Finish (What is this? Click here to see our detailed Door Hardware Finish Guide) is
Adding to cart… The item has been added
  • Security Image 1
Description

Norton EH28 Series Single Acting Center Hung Door Closer | Norton Power Transfer Floor Closer

The EH28 is a single-acting, center-hung floor closer designed for power transfer from the frame to the door through the closer spindle for interior or exterior doors weighing up to 500lbs.

MODEL EH28 DETAILS (See Below For Model EH28 X 587 Arm)

APPLICATION

• Single Acting, Handed

• Interior or Exterior Doors

• Floor Closer for Power Transfer

• Weight to 500 lbs.

• Sizes up to 4'0" x 8'6"* (1219 x 2591mm)

FEATURES

• H340 top pivot included

• Available non-hold open (N) or selective hold open (S) at same degree as dead stop

• Built-in positive dead stop prevents door from swinging beyond the desired opening degree (specify 85°, 90°, 95° or 105°)

• Provides power transfer through closer spindle. Low voltage, Class II wiring (2 wire, 18 gauge only)

• 2" min. door thickness

• Additional thrust bearing for greater load capacity

• Separate and independent valves for closing speed, latch speed and backcheck

• Available with floor plate or threshold installation (floor plate shown)

• Cast iron cement case

• Not allowed for fire rated doors

• Frame stop required on header on lock side. If not supplied by frame manufacturer, Norton Rixson 60131 recommended. Consult Door Control Accessories Catalog.

• Furnished with wood and machine screws

COMPLIANCE

• Models available to meet ICC/ANSI A117.1 low opening force requirements, prefix “PH”. (For 8-1/2 lbs. of opening force prefix “PH” and suffix “8-1/2 lbs.”)

• ANSI/C06061

• ANSI/BHMA A156.4, Grade 1

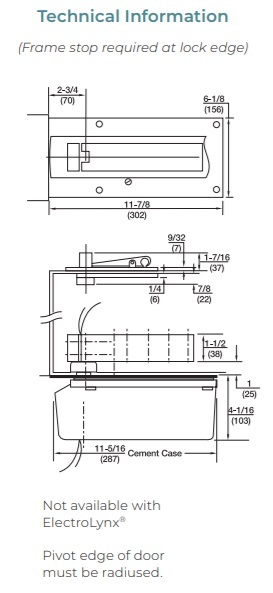

Norton EH28 Technical Information

Norton EH28 Technical Information

MODEL EH28 X 587 ARM DETAILS

FEATURES

Identical to Model EH28 except:

• Special side load arm for 1-3/4" thick doors

• Allows pivot point to be moved away from pivot edge of door – minimum 2-3/4" backset

Norton EH28x587 Arm Technical Information

Norton EH28x587 Arm Technical Information

Additional Information
Option:Choose Handing (What is handing? Click link here to know more):
https://blog.locksandsafes.com/2020/07/28/door-hardware-handing-guide/
Option:Choose Finish (What is this? Click here to see our detailed Door Hardware Finish Guide):
https://blog.locksandsafes.com/2020/07/28/lock-and-door-hardware-finishes/
