Securitron CEPT Concealed Electrical Power Transfer

Securitron CEPT Concealed Electrical Power Transfer

The heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrified hardware on the door.

The unit is discreetly concealed between the frame and door when the door is closed. Available in three multi-wire configurations and four finishes, the CEPT complements any architectural setting.

Standard Features

• Mortises into the edges of the door and frame

• Direct retrofit for competitor products

• Tamper resistant

• All metal construction including back boxes

• 7/8" [22.25mm] knockouts on back boxes accommodate EMF-type fittings

• Tested to 1 million cycles

• Compatible with butt hinges up to 6" [152.4mm] and continuous hinges with cutout

Specifications

Certifications

• ANSI/UL 10C Listed, 3 hour rated

• ULC-S318 Listed, 3 hour rated

• ANSI/SDI-BHMA A250.13 (+/- 150 psi) Windstorm Listed

• Florida Building Code Approved

Dimensions

• CEPT Housing: 9-1/16"L x 1-3/16"W x 1-7/16"D

[230.2mm L x 30.12mm W x 36.52mm D]

Shipping Weight

• 2.40 lbs [1.09 kg]

Technical Note

• Not for use with center hung or balanced doors, pocket or offset pivots or swing clear hinges.

• Door swing ranges when installed with butt hinges are:

HINGE SIZE SWING RANGE

5" [127mm] or less - up to 180˚

5-1/2" [139.7mm] - up to 130˚

6" [152.4mm] Butt Hinge - up to 110˚

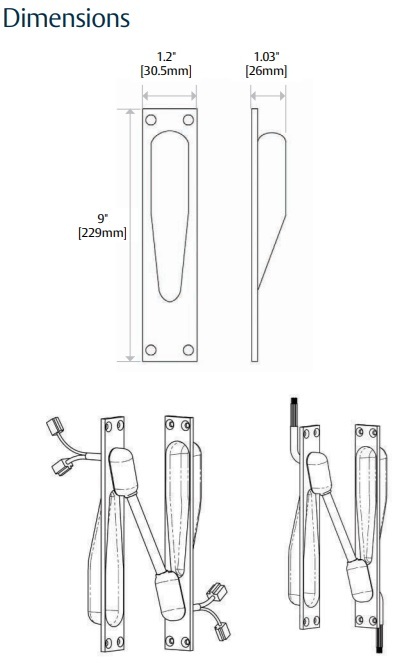

Securitron CEPT Power Transfer Dimensions
