Securitron DM62 Double Magnet Durable Electromagnetic Lock | 1,200 lbs Holding Force | Satin Stainless Steel Finish

Securitron DM62 Double Magnet Durable Electromagnetic Lock | 1,200 lbs Holding Force | Satin Stainless Steel Finish

The versatile DM62 electromagnetic lock offers strength and ease of maintenance for interior, perimeter and exterior access control—in a compact double magnet.

This Securitron DM62 all-in-one unit is designed for double doors with no mullion. With unsurpassed durability, the DM62 will last long after most buildings wear out.

FEATURES

• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability

• Fully sealed for weather resistant operations

• 3' [1 m] of jacketed, stranded conductor cable for each lock

• Automatic dual-voltage —no field adjustment required

• Instant release circuit —no residual magnetism

• Noise suppression with built-in MOV

• Efficient, low power usage

• Rust resistant — all ferrous metal surfaces plated for durability

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/BHMA A156.23, Grade 2; E08511-1000 Compliant

• CSFM- California State Fire Marshal Approved

Electrical

• 250 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

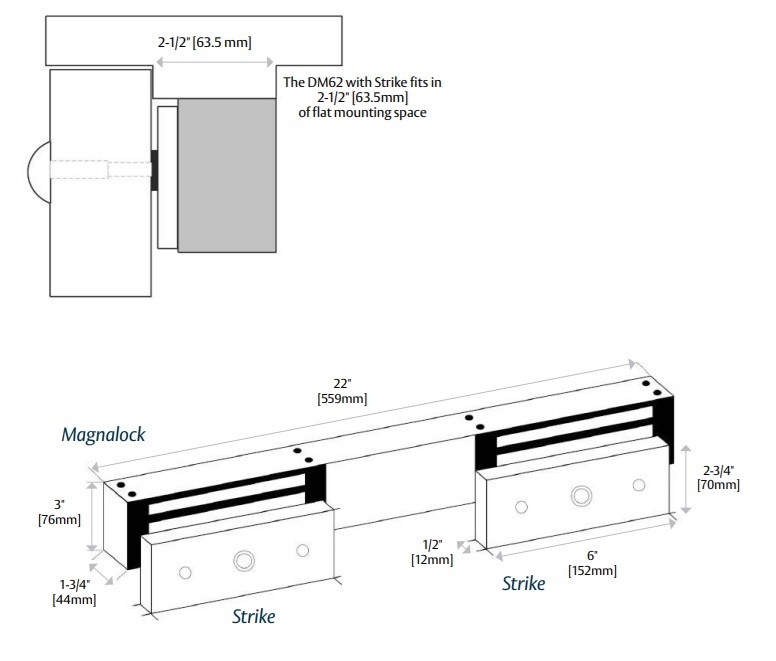

Securitron DM62 Magnetic Lock Dimensions
