Securitron
Securitron EPT Electrical Power Transfer
Shipping:
Calculated at Checkout
$67.31
Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !
Description
Securitron EPT Electrical Power Transfer
The EPT Electric Power Transfer provides concealed, secure power and data conduit between a frame and door, transmitting power to electrified locks, exit bars and more.
Its durable stamped steel housing and flexible spring steel conduit make the EPT suitable for most types of swinging doors with butt or continuous hinges or pivot hinges up to 3/4" offset. The EPT-SC accommodates swing-clear hinges and most pivot hinges.
Standard Features
• Installs in the door and frame edges
• Flexible steel shield protects wire bundles up to 5/16" [8mm] thick
• Works with almost any type butt hinge, continuous hinges and some pivot hinges.
• Rounded mounting tabs
Specifications
Certifications
• UL 10C Listed
• CAN4-S104 Listed
• UL 634 Listed (EL-EPT/ EL-EPTL)
• ULC/ORD-C634 (EL- EPT/EL-EPTL)
• ANSI/SDI-BHMA A250.13 (+/- 60 PSF) Windstorm Listed
Dimensions
• EPT Housing: 12-3/4"L x 7/8" W x 11/16" D [323.9mm L x 24.8mm W x 17.5mm D]
• EPTL Housing: 21-3/8"L x 7/8" W x 11/16"D [542.9mm L x 24.8mm W x 17.5mm D]
• Interior Flex Shield: 3/8" [9.5mm]

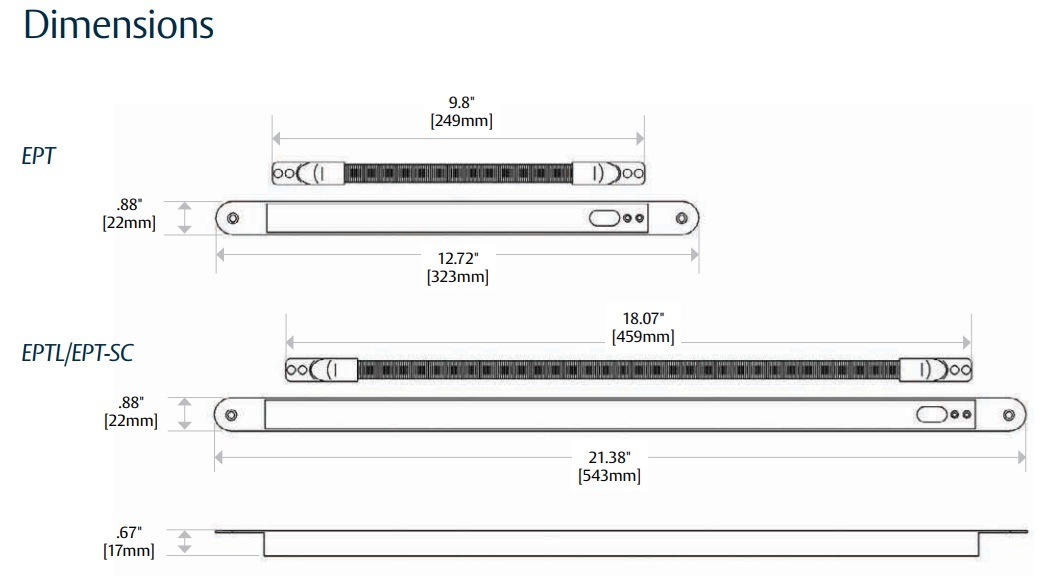

Securitron EPT Power Transfer Dimensions | Securitron EPTL Dimensions
