Securitron M32 Durable Electromagnetic Lock | Grade 3 | 600 lbs Holding Force | Satin Stainless Steel Finish

Securitron M32 Durable Electromagnetic Lock | Grade 3 | 600 lbs Holding Force | Satin Stainless Steel Finish

The ultimate in Magnalock reliability for indoor/outdoor traffic control.

The M32 electromagnetic lock is ideal for traffic control in high-use areas within secured or monitored perimeters. With unsurpassed durability, the M32 will last long after most buildings wear out. Applications include storage areas, rooms, and hallways where reliability, high durability and low-maintenance are required.

FEATURES

• Fire rated—3 hours

• PoE friendly

• Sustainability documentation

• Efficient, low power usage

• Automatic dual-voltage— no field adjustment required

• Fully sealed for weather resistant operations

• Size optimized for use with door closers

• Rust resistant—all ferrous metal surfaces plated for durability

• Instant release circuit— no residual magnetism

• Noise suppression with built-in MOV

• 10 ft [3.05m] of jacketed, stranded conductor cable

• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 3; E08501-500 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

• Environmental Product Declaration • Health Product Declaration

Electrical

• 300 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

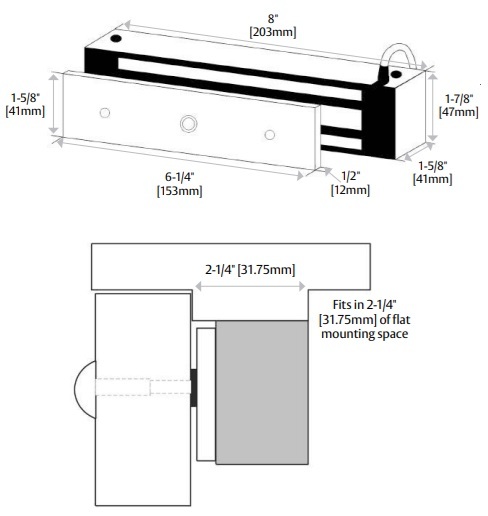

Securitron M32 Magnetic Lock Dimensions
