Securitron M34R Recessed Electromagnetic Lock | 500 lbs Holding Force

Securitron M34R Recessed Electromagnetic Lock | 500 lbs Holding Force

Recessed Magnalock for traffic control on a sliding door.

The M34R secures single sliding doors with Magnalock strength for traffic control applications within a monitored perimeter. The recessed design on the edge of the door that comes against the frame when the door is closed conceals the maglock for hidden protection that blends with the aesthetics of the opening. Ideal on automatic single sliding doors or on sliding doors for patios, storage closets and more.

FEATURES

• Efficient, low power usage

• Automatic dual-voltage—no field adjustment required

• Fully sealed for weather resistant operations

• Rust resistant—all ferrous metal surfaces plated for durability

• Instant release circuit— no residual magnetism

• Noise suppression with built-in MOV

• Recessed for aesthetically appealing finish

• 10 ft [3.05m] of jacketed, stranded conductor cable

• Direct mount in door frame for strength and reliability

Certifications

• UL 294 listed

• CAN4-S104, CAN/ULC-S533 Listed

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Electrical

• 320mA at 12 VDC

• 170mA at 24 VDC

Holding Force

• 500 lbs [227kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

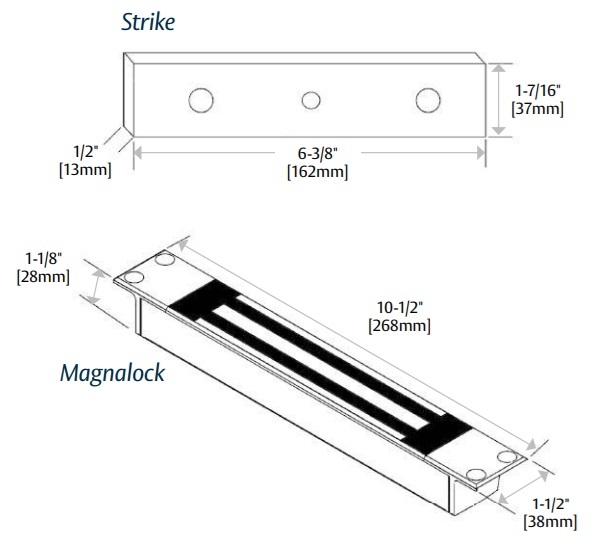

Securitron M34R Recessed Magnetic Lock Dimensions
