Securitron M62 Durable Electromagnetic Lock | 1,200 lbs Holding Force | Satin Stainless Steel Finish

Securitron M62 Durable Electromagnetic Lock | 1,200 lbs Holding Force | Satin Stainless Steel Finish

The ultimate in Magnalock versatility for indoor/outdoor higher security.

The M62 is a strong, easy-to-maintain solution for interior, perimeter and exterior access control. With unsurpassed durability, the M62 will last long after most buildings wear out. Flexible mounting options support applications for hollow metal, concrete filled metal, wood, or glass with aluminum frames, and all glass doors. Options include single and double door configurations, or specialty applications such as gates and fences, and hazardous locations.

FEATURES

• Fire rated—3 hours

• PoE friendly

• Sustainability documentation

• Efficient, low power usage

• Automatic dual-voltage —no field adjustment required

• Fully sealed for weather resistant operations

• Size optimized for use with door closers

• Rust resistant—all ferrous metal surfaces plated for durability

• Instant release circuit —no residual magnetism

• Noise suppression with built-in MOV

• 10 ft [3.05m] of jacketed, stranded conductor cable

• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 2; E08501-1000 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

• Environmental Product Declaration

• Health Product Declaration

• UL 294 Class I, Division 2, Groups A, B, C and D Listed (-EX configuration only)

Electrical

• 250 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force

• 1,200 lbs [544kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

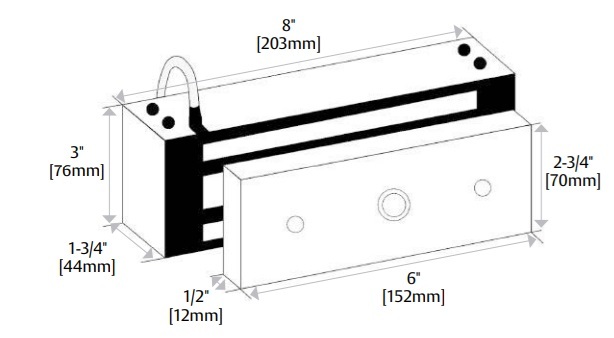

Securitron M62 Magnetic Lock Dimensions
