Securitron M68 Durable Electromagnetic Lock | Grade 2 | 1200 lbs Holding Force

Securitron M68 Durable Electromagnetic Lock | Grade 2 | 1200 lbs Holding Force

Easily installed, bracket mounted Magnalock for higher security interior applications.

Ideal for traffic control in high-use areas where higher security is needed, the M68 electromagnetic lock provides reliability, durability and strength with low maintenance and efficient power consumption. Bracket mounting and wiring chamber provide ease of installation.

FEATURES

• PoE friendly

• Automatic dual-voltage —no field adjustment required

• Bracket mounting provides the easiest install for out-swing doors

• Rust resistant—all ferrous metal surfaces plated for durability

• Instant release circuit —no residual magnetism

• Internal wire access chamber

• Noise suppression with included MOV

• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability

• Strong hold and low maintenance

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• CSA-C22.2 No.205 Listed

• ANSI/BHMA A156.23, Grade 2; E18501-1000 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Electrical

• 275 mA at 12 VDC

• 150 mA at 24 VDC

Holding Force

• 1200 lbs [544kg]

Operating Temperature

• 32˚ to 110˚F [0˚ to 43˚C]

• Indoor use only

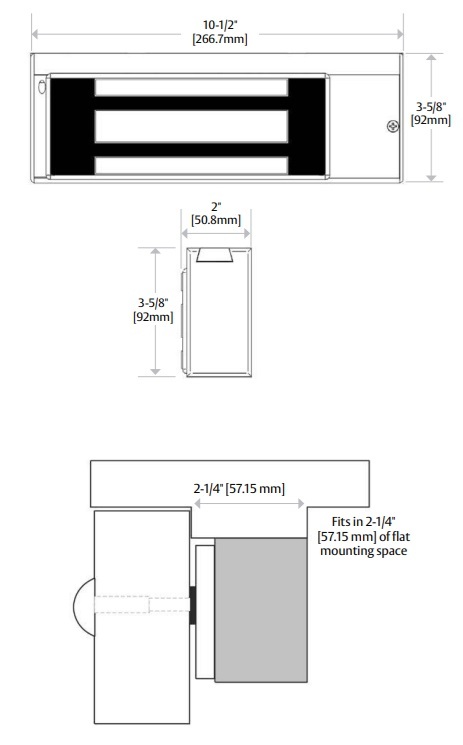

Securitron M68 Magnetic Lock Dimensions
