Securitron M680E EcoMag Intelligent Electromagnetic Lock | Grade 2 | 1200 lbs Holding Force

Securitron M680E EcoMag Intelligent Electromagnetic Lock | Grade 2 | 1200 lbs Holding Force

The same unsurpassed intelligence, style and convenience as the previous M680 series, but with 80% reduction in energy consumption.

The M680E is intelligent, with built-in door prop sensing allowing the magnet to deenergize the coil when the door is held open for extended periods. The M680EBD offers built-in smart voltage sensing, integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics and design finishes of the EcoMag are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock with an updated strike plate mounting template. The optional integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress.

FEATURES

• Strike plate mounting template provides the easiest install for out-swing doors

• LED Indicator shows the lock is secure, open, or has an incomplete bond

• Wire chamber anti-tamper switch

• Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC

• Available integrated BondSTAT and Door Position Switch

• Autosensing dual voltage with microprocessor technology

• Adjustable automatic relock timer (0 to 30 seconds)

• Energy efficient, low power usage

• Size optimized for use with door closers

Certifications

• UL 10C Fire Rated, 1 hour

• CAN/ULC-S104 Fire Door Conformant

• UL 1034 Burglary-Resistant Listed

• UL 294

• ANSI/BHMA A156.23, Grade 2; E18501 Compliant

• California State Fire Marshal Listed

Electrical

• Maglock Average Power Draw (±10%)

— 113 mA at 12 VDC

— 52 mA at 24 VDC

• Maglock Maximum Power Draw (±10%)

— 520 mA at 12 VDC

— 360 mA at 24 VDC

• REX Power (±10%)

— +25 mA at 12 VDC

— +20 mA at 24 VDC

Holding Force

• 1200 lbs [544kg]

Operating Temperature

• 32˚ to 110˚F [0˚ to 43˚C]

• Indoor use only

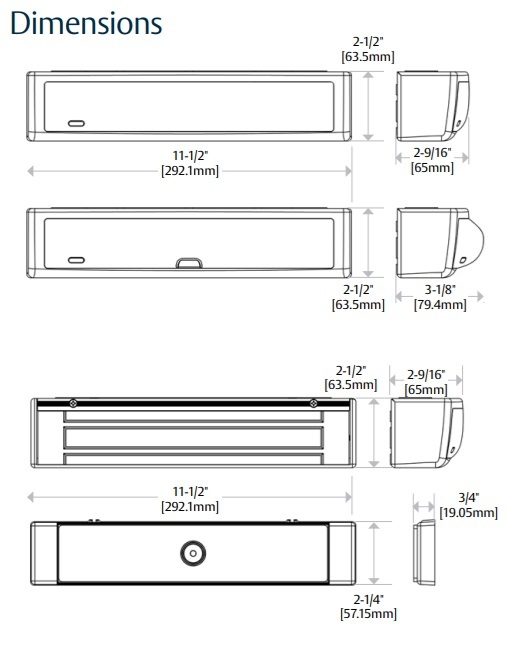

Securitron M680E Intelligent Electromagnetic Lock Dimensions
