Securitron M82 Durable Electromagnetic Lock | Grade 1 | 1,800 lbs Holding Force

Securitron M82 Durable Electromagnetic Lock | Grade 1 | 1,800 lbs Holding Force

Industrial strength hold for challenging indoor/outdoor environments.

The M82 electromagnetic lock offers unsurpassed magnetic holding strength, durability and ease of maintenance for interior, perimeter and exterior access control applications in high-risk environments. With unsurpassed durability, the M82 will last long after most buildings wear out. Flexible mounting options are available for higher security locations and other environments where extreme forces may be encountered.

FEATURES

• Efficient, low power usage

• Automatic dual-voltage —no field adjustment required

• Fully sealed for weather resistant operations

• Rust resistant—all ferrous metal surfaces plated for durability

• Instant release circuit —no residual magnetism

• Noise suppression with built-in MOV

• 10 ft [3.05m] of jacketed, stranded conductor cable

• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability

• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ULC-S533 Listed

• ANSI/UL 294 Listed

• ANSI/BHMA A156.23, Grade 1; E08501-1500 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Electrical

• 350 mA at 12 VDC

• 200 mA at 24 VDC

Holding Force

• 1,800 lbs [816kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

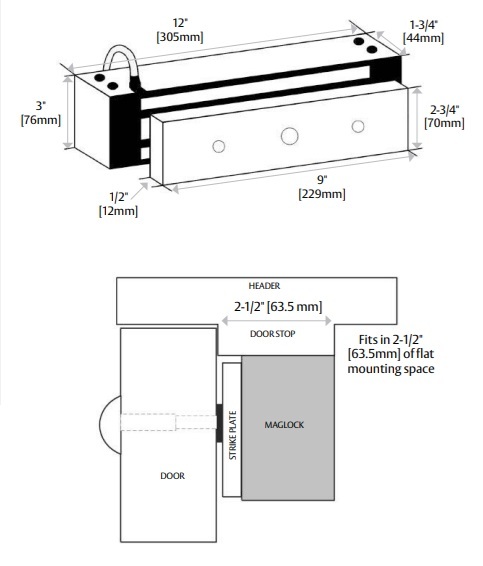

Securitron M82 Magnetic Lock Dimensions
