Securitron MM15 MEMLOCK Magnetic and Mechanical Lock | 4000 lbs Holding Force

Securitron MM15 MEMLOCK Magnetic and Mechanical Lock | 4000 lbs Holding Force

Unique hybrid design, with two tons of holding power.

The hybrid design of this magnetic electromechanical lock includes two springloaded, hardened steel jaws that deliver up to 4,000 lbs of ultimate holding power. In a forced-entry assault, the jaws of the MM15 MEMLOCK clamp down on the armature plate and hold firm, for an unmatched level of access control.

FEATURES

• Efficient, low power usage

• Ideal for mental healthcare and auxiliary detention facilities and other high-risk locations

• Automatic dual-voltage — no field adjustment required

• Mounting plate for easy, accurate installation

• Size optimized for use with door closers

• Accepts AC or DC current

• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability

• Fail Safe, but can be installed with a battery backup power supply

Certifications

• UL 294 Listed

• UL 10C Fire Rated, 1 hour

• CAN/ULC-S104 Listed

Electrical

• AC Current: 130 mA at 12 VAC; 250 mA at 24 VAC

• DC Current: 100 mA at 12 VDC; 200 mA at 24 VDC

Holding Force

• 4,000 lbs [1814 kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or outdoor use

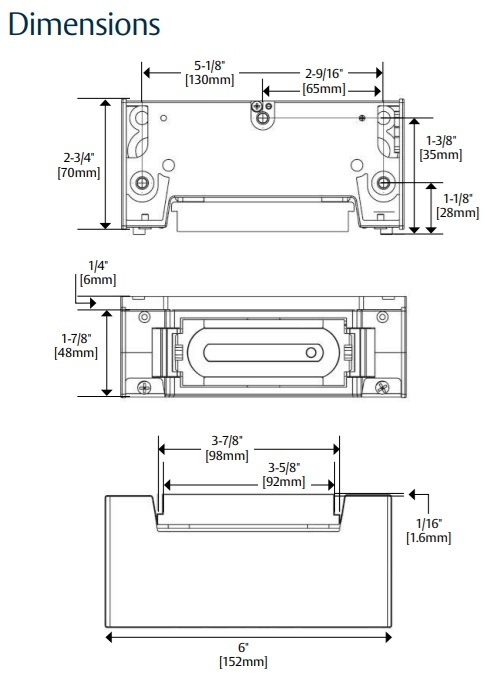

Securitron MM15 MEMLOCK Dimensions
