Securitron MUNL Unlatch Electric Strike For Mortise Locks

Securitron MUNL Unlatch Electric Strike For Mortise Locks

The universal compact, high performance, no cut electromechanical motorized strike for use with mortise locksets without deadbolts.

Designed for easy installation, the MUNL is capable of releasing under preload conditions and accommodates latchbolts up to 3/4" [19mm] throw. Strong enough to withstand windstorm conditions, the MUNL is the UL listed, fire rated electric strike that includes lock monitoring standard, provides ANSI/BHMA Grade 1 holding power and includes field adjustability for latch and deadlatch positions.

FEATURES

• No cutting required

• Preload capable (up to 15 lbs., fail secure only)

• Accomodates up to 3/4" [19mm] latchbolt (with 1/8" [3.175mm] door gap)

• Latchbolt Monitor (standard SPDT)

• Tamper Resistant

• Fail secure (standard)

• Maintains dead latch function at all times

• Strike body depth 1-7/8" [47.6mm]

Specifications

Certifications

• UL 10C fire-rated, 3 hour (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• ANSI/SDI A250.13 windstorm listed

• Florida Building Code approved TAS 201, 202, 203t

• ANSI-ASTM E330

Electrical

• 12 VDC (continuous duty):

x Inrush – 2A

x Standby Current – 40mA, minimum 700mA when operating

• 24 VDC (continuous duty)

x Inrush – 4A

x Standby Current – 40mA, minimum 500mA when operating

Operating Temperature

• -20˚ to 125˚ F [-29˚ to 52˚ C]

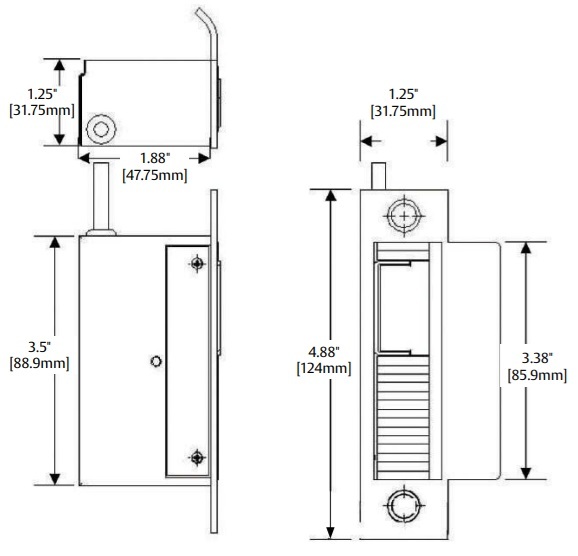

Securitron MUNL Electric Strike Dimensions
