Securitron R100 Aperio Card Reader Factory Paired with Wiegand Hub

Securitron R100 Aperio Card Reader Factory Paired with Wiegand Hub

The R100 surface mounted wireless card reader offers a cost effective, aesthetically pleasing way to extend access control to glass, metal or stone surfaces without the need for cutting or drilling.

A retrofit solution capable of being installed in minutes that compliments virtually any ASSA ABLOY electrified locking device. Provides flexible, robust retrofit options for entryways unlike any the industry has seen before.

FEATURES

• For use on glass or metal surfaces

• 2.4 GHz Aperio wireless technology

• Supports HID multiCLASS SE® card technologies

• Supports NFC & BLE mobile credentials

• Integrates with existing access control systems and ID badges

• Audit trail limited by EAC system

• LEDs indicate valid/invalid entries; Red/Amber or Green/Amber

• Black finish

Certifications

• FCC Part 15 & Industry Canada Compliant

• CE RED – Radio Equipment Directive – 2014/53/EU

• RoHS Compliant

Electrical

• Estimated Battery Life: 50,000 Cycles

• (2) “AA” lithium batteries (included) AA Lithium Batteries required. Use of other types of batteries, such as alkaline, will significantly decrease battery life.

• microUSB port for emergency power

Environmental

• Operating Temperature -13° to 140° F [-25° to 60° C]

• Tested to meet IP65

Card Technology: HID® multiCLASS SE®

• High Frequency (13.56 MHz)

− HID iCLASS®

− HID iCLASS SE® (SIO®-enabled)

− HID iCLASS® Seos®

− HID MIFARE® SE

− HID DESFire® EV1 SE

− MIFARE CLASSIC

− DESFire® EV1

− DESFire® EV2 (Legacy Mode)

• Low Frequency (125 kHz)

− HID Prox®

− AWID

− EM4102

− IOProx

• NFC

• HID BLE Mobile Access

• SEOS iOS Apple Wallet

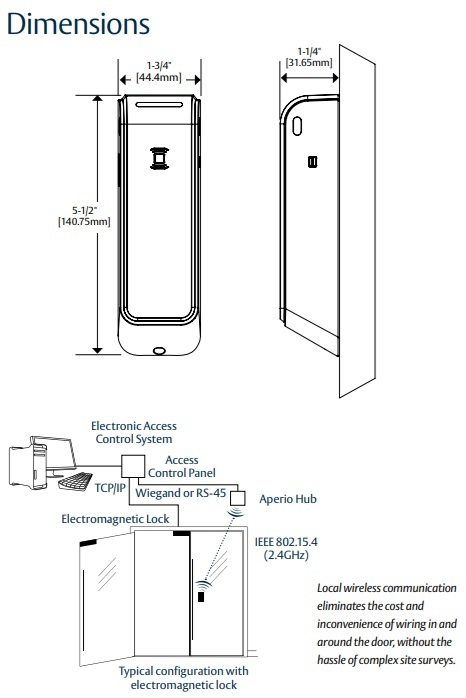

Securitron R100 Dimensions
