Securitron SAM Shear Aligning Electromagnetic Lock | Grade 2 | 1200 lbs Holding Force

Securitron SAM Shear Aligning Electromagnetic Lock | Grade 2 | 1200 lbs Holding Force

Hidden strength for any application.

This concealed Magnalock is ideal for traffic control or medium security and with its flexible mounting options solutions the most challenging door control situations. The SAM Shear Aligning Magnalock has mounting options for a single door or each leaf on a pair of doors and can be on a sliding, in-swing, out-swing or swing-through door. It mounts fully concealed into wood, steel, aluminum or latching in any position: at the header, door edge or threshold.

FEATURES

• Efficient, low power usage

• Automatic dual-voltage — no field adjustment required

• Fully sealed for weather resistant operations

• Rust resistant — all ferrous metal surfaces plated for durability

• Instant release circuit — no residual magnetism

• Noise suppression with built-in MOV

• Recessed for aesthetically appealing finish

• 10 ft [3.05m] of jacketed, stranded conductor cable

• Direct mount in door frame for strength and reliability

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/UL 294 Listed

• ANSI/BHMA A156.23, Grade 2; E08561-1000, E08571-1000, E08581- 1000, E08591-1000 Compliant

• CSFM—California State Fire Marshal Approved

• CE:EN 50081-1(92), EN 61000-6-2(99) Approved

Electrical

• 320mA at 12 VDC

• 170mA at 24 VDC

Holding Force

• 1200 lbs [544kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or Outdoor use

• Not for use in open channel doors

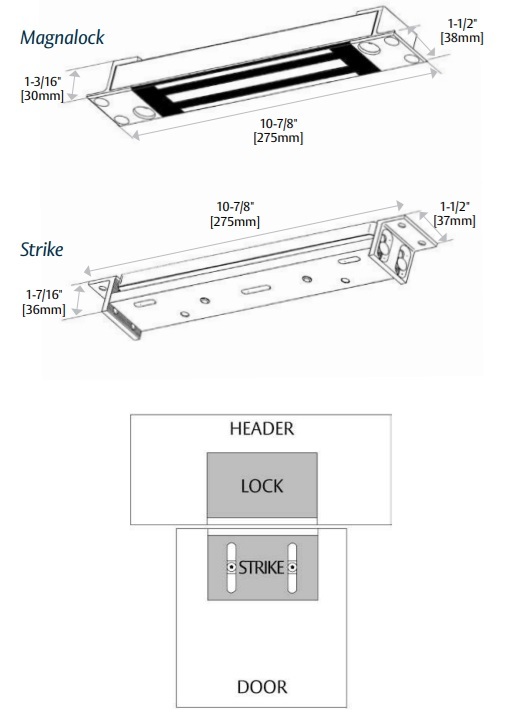

Securitron SAM Shear Aligning Magnetic Lock Dimensions
