Securitron SAM2-24 Shear Aligning Electromagnetic Lock | Grade 3 | 600 lbs Holding Force

Securitron SAM2-24 Shear Aligning Electromagnetic Lock | Grade 3 | 600 lbs Holding Force

Hidden strength at any angle ideal for traffic control.

The compact and versatile SAM2-24 Shear Aligning Magnalock provides 600 lbs. of holding force to swinging or sliding doors. It is ideal for traffic control and to secure smaller applications, like sliding closet doors, atriums, and more. The SAM2-24 mounts fully concealed into wood, steel, aluminum or Herculite doors in any position: at the header, door edge or threshold.

FEATURES

• Efficient, low power usage

• Fully sealed for weather resistant operations

• Compact design fits tight spaces

• Rust resistant—all ferrous metal surfaces plated for durability

• Instant release circuit —no residual magnetism

• Noise suppression with included MOV

• Recessed for aesthetically appealing finish

• 6 ft [1.83m] of jacketed, stranded conductor cable

• Direct mount in door frame for strength and reliability

Certifications

• UL 10C Listed

• CAN4-S104, CAN/ ULC-S533 Listed

• ANSI/UL 294 Listed

• ANSI/BHMA A156.23, Grade 3; E08571- 1000, E08581-500 Compliant

• CSFM—California State Fire Marshal Approved

Electrical

• 84 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]

• Indoor or outdoor use

• Not for use in open channel doors

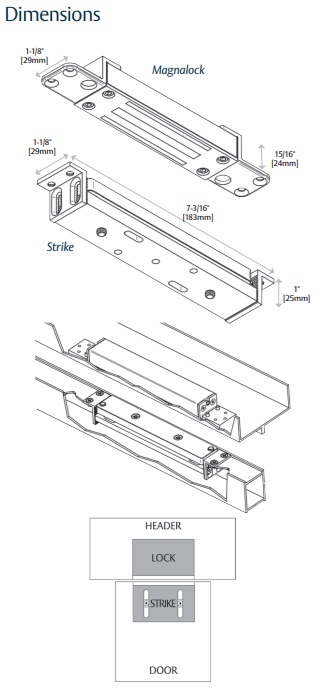

Securitron SAM2-24 Shear Aligning Electromagnetic Lock Dimensions
