Securitron SEPT Square Cut Electrical Power Transfer

Securitron SEPT Square Cut Electrical Power Transfer

Concealed, secure conduit for power and data transfer between a frame and door.

This unit is designed with a stamped steel housing and spring steel conduit to protect power and data wires. The square mounting tabs provide easier installation for recessed installation. The SEPT can be used on swing doors with butt hinges, continuous hinges or pivots with less than 3/4" offset.

Standard Features

• Heavy duty design

• Installs in the door and frame edges

• Flexible steel shield protects wires – 1/4" [6.3mm] inside diameter

• Works with almost any type of butt hinge or continuous hinge

Specifications

Certifications

• UL 10C Listed

• CAN4-S104 Listed

• ANSI A250.13 (+/- 150 psi)

• Windstorm Listed

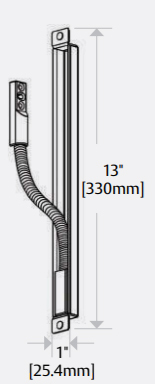

Securitron SEPT Power Transfer Dimensions
