Securitron UNL Unlatch Electric Strike For Cylindrical Locks

Securitron UNL Unlatch Electric Strike For Cylindrical Locks

The universal compact, high performance, no cut electromechanical motorized electric strike for use with cylindrical locksets.

Designed for easy installation, the UNL is capable of releasing under preload conditions and accommodates latchbolts up to 5/8" throw. Strong enough to withstand windstorm conditions, the UNL is the UL listed, fire rated electric strike that includes lock monitoring standard and provides ANSI/BHMA Grade 1 holding power.

FEATURES

• No cutting required

• Preload capable (up to 15 lbs., fail secure only)

• Accomodates 1/2" – 5/8" [12.7mm – 15.875mm] lacthbolt (5/8" [12.7mm] with 1/8" [3.175mm] door gap)

• Latchbolt Monitor (standard SPDT)

• Fail secure (standard)

• Tamper Resistant

• Supports deadlatch function

• Strike body depth 1-1/2" [38.1mm]

Specifications

Certifications

• UL 10C fire-rated, 3 hour (fail secure only)

• CAN/ULC-S104 fire door conformant

• NFPA-252 fire door compliant

• ASTM-E152 fire door compliant

• ANSI/SDI A250.13 windstorm listed

• Florida Building Code approved TAS 201, 202, 203t

• ANSI-ASTM E330

Electrical

• 12 VDC (continuous duty): x Inrush – 2A x Standby Current – 40mA, minimum 700mA when operating

• 24 VDC (continuous duty): x Inrush – 4A x Standby Current – 40mA, minimum 500mA when operating Holding Force

• 1500 lbs [680kg] static

Operating Temperature

• -20˚ to 125˚ F [-29˚ to 52˚ C]

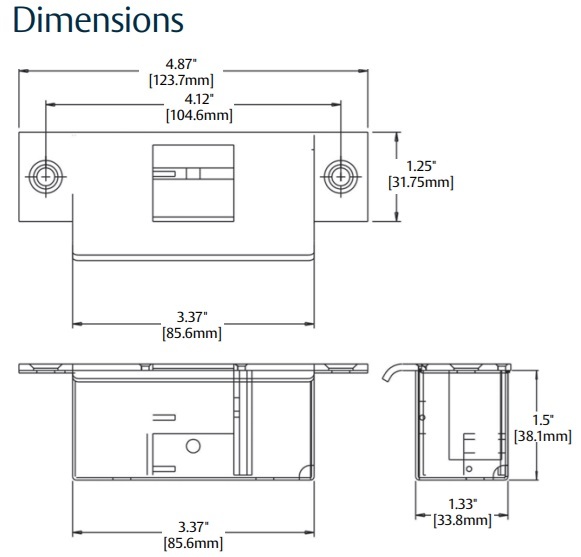

Securitron UNL Electric Strike Dimensions
