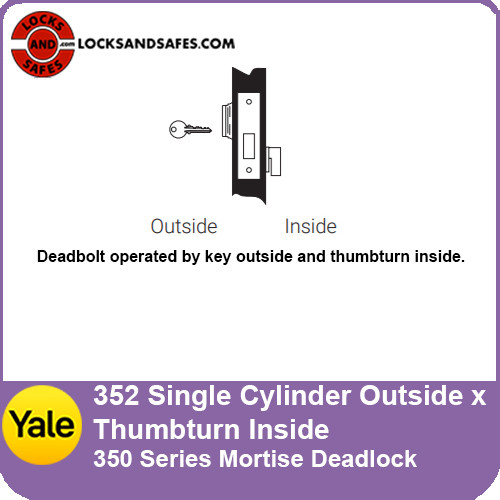

Yale 352 Single Cylinder Outside x Thumbturn Inside Mortise Deadlock | Yale 350 Series

Yale 352 Single Cylinder Outside x Thumbturn Inside Mortise Deadlock | Yale 350 Series

TECHNICAL INFORMATION

Application

Mortise installation for 1-3/4" (44mm) doors, unless otherwise specified. 3" thick doors maximum for thumbturn functions.

Backset

2-3/4" (70mm) only.

Door Prep

Refer to template number 7003-1008

Fire Listings

350 series deadlocks, when used in conjunction with the primary latching device, are UL - cUL listed for use on fire doors having a rating up to and including 3 hours. In addition, the 350 series are cUL listed for use on wood doors having a rating up to and including 90 minutes. Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY ACCENTRA® makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

Handing

Functions are non-handed and easily field reversible.

Deadbolt

Laminated stacked steel with hardened pin, 1" (25mm) throw.

Front

4-5/8" x 1-1/8" (117mm x 29mm) Brass, bronze or stainless steel. Adjustable to accommodate flat or beveled-edged doors (bevel adjustment 1/8" in 2" (3mm in 51mm).

Case

Heavy wrought steel, zinc plated and dichromated.

Strike

3-1/2" x 1-1/8", model number 30S provided standard. 4-7/8" x 1-1/4", model number 545N optional. Optional wrought box model number 31S available to order. (Please contact us)

Yale 350 Mortise Lock Dimensions
