ASSA ABLOY ACCENTRA® 4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

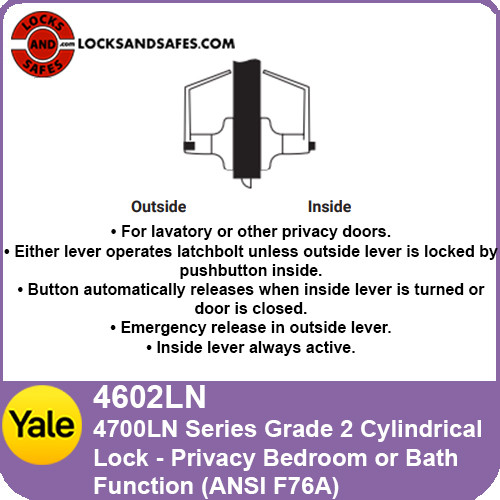

FUNCTION

Privacy Bedroom or Bath (ANSI F76A)

• For lavatory or other privacy doors.

• Either lever operates latchbolt unless outside lever is locked by pushbutton inside.

• Button automatically releases when inside lever is turned or door is closed.

• Emergency release in outside lever.

• Inside lever always active.

FEATURES

• Field reversible handing for easy installation

• Range of functions and options for a wide variety of commercial applications

• Available in five trims and six finishes

• ADA compliant for ease of accessibility

SPECIFICATIONS

Door Prep

ANSI/SDI A250.14

Door Thickness

Adjustable for doors 1-3/8" to 1-3/4" (35mm to 44mm)

Backset

2-3/4" (70mm) standard, 2-3/8" (60mm) optional

Handing

Non-handed, field reversible

Latchbolt

2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt plain or deadlocking.

Strike

ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center.

Through-bolts

Optional through-bolts provided. Installation is at the discretion of the installer.

ANSI/BHMA

Certified Grade 2, ANSI/BHMA A156.2, Series 4000

UL/cUL

Listed for 3 hour fire doors

Windstorm Certified (refer to local codes)

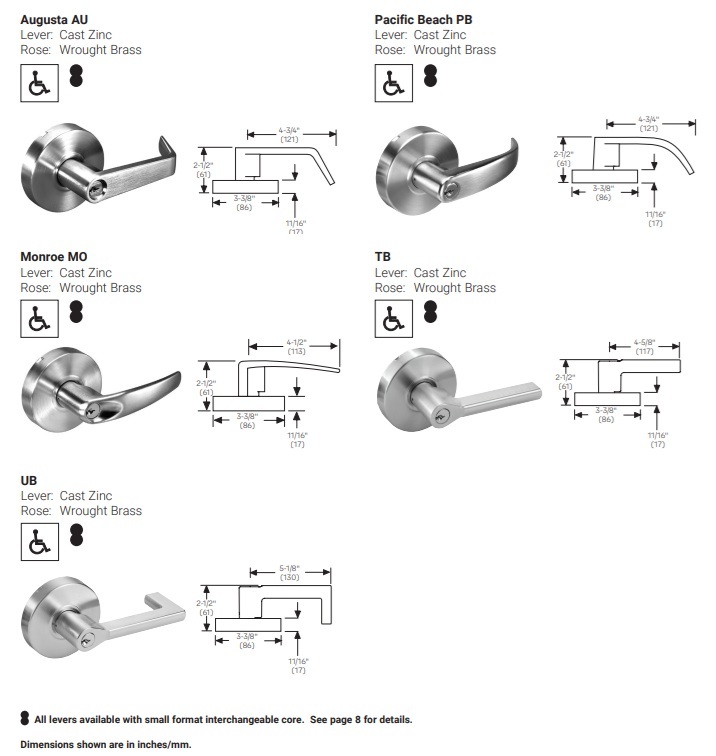

Yale 4600LN Trim Options
