ASSA ABLOY ACCENTRA® 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN Series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

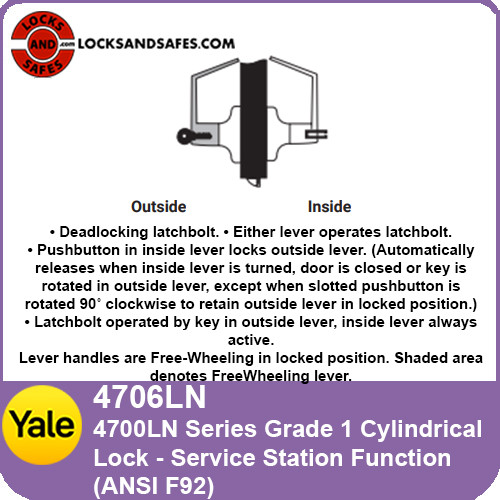

FUNCTION

Service Station (ANSI F92)

• Deadlocking latchbolt.

• Either lever operates latchbolt.

• Pushbutton in inside lever locks outside lever. (Automatically releases when inside lever is turned, door is closed or key is rotated in outside lever, except when slotted pushbutton is rotated 90˚ clockwise to retain outside lever in locked position.)

• Latchbolt operated by key in outside lever, inside lever always active.

Lever handles are Free-Wheeling in locked position. Shaded area denotes FreeWheeling lever.

FEATURES

• Available in 19 functions, 5 lever designs, and 9 finishes

• Knurled lever designs available

• Freewheeling trim

• Available with Microshield® antimicrobial coating

SPECIFICATIONS

Door Thickness

1-3/4" (44mm) to 2" (51mm); 1-3/8" (35mm) or 2-1/4" (57mm), please specify on order

Strike

ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center.

Backset 2-3/4" (70mm)

Handing Non-handed

Installation ANSI/SDI A250.14

ANSI/BHMA

Certified ANSI/BHMA A156.2, Series 4000 Grade 1

APPLICATIONS AND LISTINGS

• UL – cUL listed for use on fire doors having a rating up to and including 3 hours

• Windstorm certified refer to local codes

• Meets accessibility guidelines for the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1
