ASSA ABLOY ACCENTRA® 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4700LN Series is certified to ANSI/BHMA Grade 1 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

FUNCTION

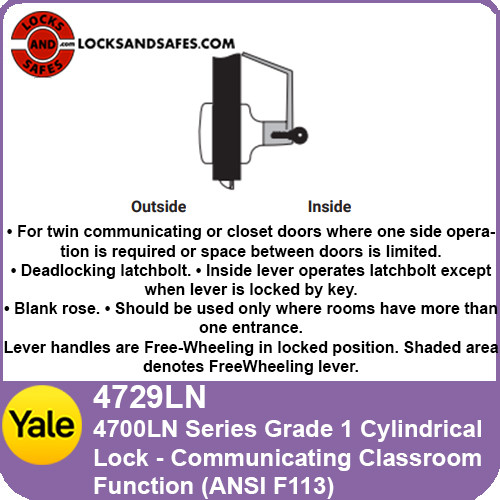

Communicating Classroom (ANSI F113)

• For twin communicating or closet doors where one side operation is required or space between doors is limited.

• Deadlocking latchbolt.

• Inside lever operates latchbolt except when lever is locked by key.

• Blank rose.

• Should be used only where rooms have more than one entrance.

Lever handles are Free-Wheeling in locked position. Shaded area denotes FreeWheeling lever.

FEATURES

• Available in 19 functions, 5 lever designs, and 9 finishes

• Knurled lever designs available

• Freewheeling trim

• Available with Microshield® antimicrobial coating

SPECIFICATIONS

Door Thickness

1-3/4" (44mm) to 2" (51mm); 1-3/8" (35mm) or 2-1/4" (57mm), please specify on order

Strike

ANSI 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center.

Backset 2-3/4" (70mm)

Handing Non-handed

Installation ANSI/SDI A250.14

ANSI/BHMA

Certified ANSI/BHMA A156.2, Series 4000 Grade 1

APPLICATIONS AND LISTINGS

• UL – cUL listed for use on fire doors having a rating up to and including 3 hours

• Windstorm certified refer to local codes

• Meets accessibility guidelines for the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ANSI 117.1
