The 5300LN Series Cylindrical Lock is a reliable Grade 2 cylindrical lockset that boasts innovative design and construction features. The Free Wheeling lever mechanism helps to resist against vandalism, while the adjustable door thickness feature makes for easy installation. Protected by a five year warranty you can rely on the 5300LN to withstand the rigors of everyday use.

FUNCTION

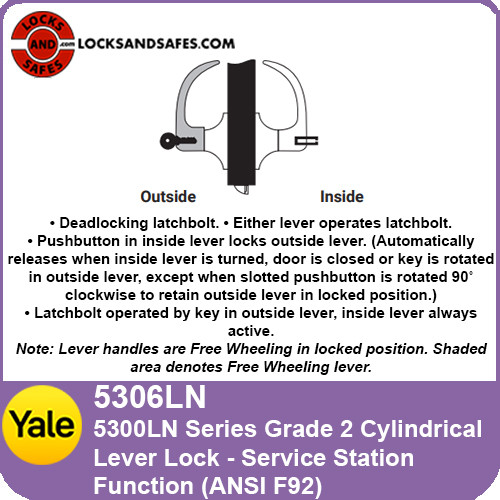

Service Station (ANSI F92)

• Deadlocking latchbolt.

• Either lever operates latchbolt.

• Pushbutton in inside lever locks outside lever. (Automatically releases when inside lever is turned, door is closed or key is rotated in outside lever, except when slotted pushbutton is rotated 90˚ clockwise to retain outside lever in locked position.)

• Latchbolt operated by key in outside lever, inside lever always active.

BENEFITS

• Secure: Designed to withstand everyday use and resist damage and vandalism

• Versatile: Variety of functions, trims, finishes and keying options for ultimate installation flexibility

• Protected: Five year mechanical warranty

• Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and durability

FEATURES

• Free Wheeling lever mechanism prevents vandalism and reduces lock maintenance

• Adjustable door thickness mechanism

• Heavy duty torsion spring prevents lever sag

• Thrubolts solidly through the door, providing greater strength and stability

• Available with a wide range of cylinder options

• Available in 23 functions (including electrified), 10 standard finishes and 3 lever designs

• ADA compliant for ease of accessibility

SPECIFICATIONS

Backset

2-3/4" standard, 2-3/8" optional

Door Thickness

Adjustable for doors 1-3/4" to 2". Available for 1-3/8" and 2-1/4" doors to order.

Handing

Non-handed, field reversible

Latchbolt

2-3/4" backset, 1/2" throw.

Strike

ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center.

ANSI/BHMA

Certified Grade 2, ANSI/BHMA A156.2

UL/cUL

Listed for 3 hour fire doors

Windstorm Certified (refer to local codes)

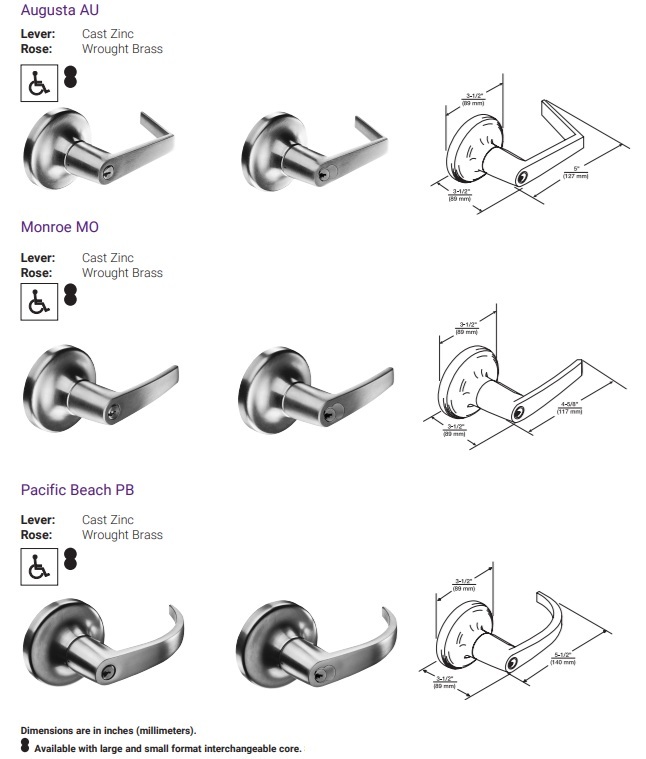

YALE 5300N Lever Styles

Yale 5300LN Exploded View
