Yale 5307LN Entry Function (ANSI F109) | Yale 5300LN Series Grade 2 Cylindrical Lever Lock

Yale 5307LN Entry Function (ANSI F109) | Yale 5300LN Series Grade 2 Cylindrical Lever Lock

The 5300LN Series Cylindrical Lock is a reliable Grade 2 cylindrical lockset that boasts innovative design and construction features. The Free Wheeling lever mechanism helps to resist against vandalism, while the adjustable door thickness feature makes for easy installation. Protected by a five year warranty you can rely on the 5300LN to withstand the rigors of everyday use.

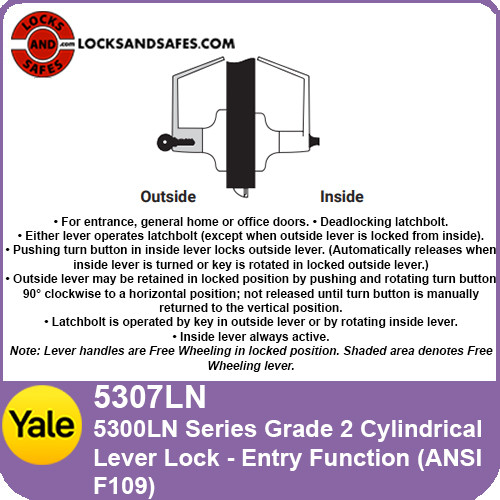

FUNCTION

Entry (ANSI F109)

• For entrance, general home or office doors.

• Deadlocking latchbolt.

• Either lever operates latchbolt (except when outside lever is locked from inside).

• Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)

• Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.

• Latchbolt is operated by key in outside lever or by rotating inside lever.

• Inside lever always active.

BENEFITS

• Secure: Designed to withstand everyday use and resist damage and vandalism

• Versatile: Variety of functions, trims, finishes and keying options for ultimate installation flexibility

• Protected: Five year mechanical warranty

• Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and durability

FEATURES

• Free Wheeling lever mechanism prevents vandalism and reduces lock maintenance

• Adjustable door thickness mechanism

• Heavy duty torsion spring prevents lever sag

• Thrubolts solidly through the door, providing greater strength and stability

• Available with a wide range of cylinder options

• Available in 23 functions (including electrified), 10 standard finishes and 3 lever designs

• ADA compliant for ease of accessibility

SPECIFICATIONS

Backset

2-3/4" standard, 2-3/8" optional

Door Thickness

Adjustable for doors 1-3/4" to 2". Available for 1-3/8" and 2-1/4" doors to order.

Handing

Non-handed, field reversible

Latchbolt

2-3/4" backset, 1/2" throw.

Strike

ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center.

ANSI/BHMA

Certified Grade 2, ANSI/BHMA A156.2

UL/cUL

Listed for 3 hour fire doors

Windstorm Certified (refer to local codes)

YALE 5300N Lever Styles

Yale 5300LN Exploded View
