Designed for industrial and commercial use, ASSA ABLOY ACCENTRA® 5400LN Series heavy-duty cylindrical lockset offers rugged reliability and performance in a range of functions. With innovative features such as our Free Wheeling lever mechanism, wear-resistant chassis plates, heavy-duty lever return springs and thrubolting, this Grade 1 workhorse is favored for a variety of applications that require reliable access every day.

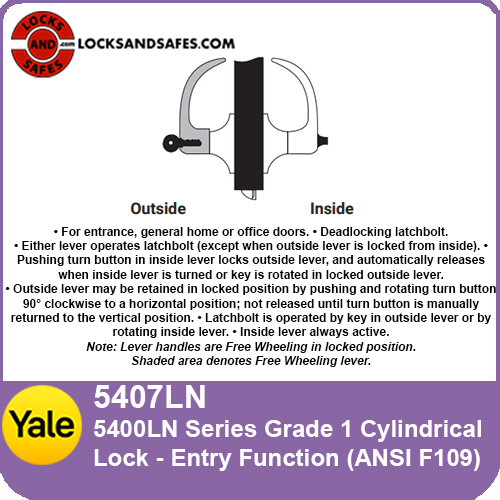

FUNCTION

Entry Lock ANSI F109

• For entrance, general home or office doors.

• Deadlocking latchbolt.

• Either lever operates latchbolt (except when outside lever is locked from inside).

• Pushing turn button in inside lever locks outside lever, and automatically releases when inside lever is turned or key is rotated in locked outside lever.

• Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.

• Latchbolt is operated by key in outside lever or by rotating inside lever.

• Inside lever always active.

Lever handles are Free Wheeling in locked position. Shaded area denotes Free Wheeling lever.

BENEFITS

• Heavy-Duty: Rugged Grade 1 construction offers greater reliability and resists wear-and-tear

• Secure: Innovative features protect against damage and vandalism

• Versatile: Range of functions and options offer an ideal solution for a variety of commercial applications

• Easy installation: Adjustable rose allows for easy adjustment on different door thicknesses

• Strong & Reliable: ANSI/BHMA Grade 1 certification for long-life and durability

FEATURES

• Heavy duty construction features wear-resistant chassis plates, longer thread-locking thrubolts, lifetime warrantied lever return springs and stainless steel latchbolt for exceptional strength and durability

• Free Wheeling lever mechanism prevents vandalism and reduces maintenance

• Adjustable rose support plates

• Available in 3 lever designs, 24 functions (including electrified) and 12 standard finishes

• ANSI/BHMA Certified Grade 1

• ADA compliant for ease of accessibility

SPECIFICATIONS

Backset

2-3/4" standard, 3-3/4" optional

Door Thickness

Adjustable for doors 1-3/4" to 2"

Handing

Non-handed, field reversible

Latchbolt

2-3/4" backset, 1/2" throw.

Strike

ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center.

ANSI/BHMA

Certified Grade 1, ANSI/BHMA A156.2

UL/cUL

Listed for 3 hour fire doors

Windstorm

Certified, check local codes.

YALE 5400 Lever Styles

Yale 5400LN Exploded View
