Designed for industrial and commercial use, ASSA ABLOY ACCENTRA® 5400LN Series heavy-duty cylindrical lockset offers rugged reliability and performance in a range of functions. With innovative features such as our Free Wheeling lever mechanism, wear-resistant chassis plates, heavy-duty lever return springs and thrubolting, this Grade 1 workhorse is favored for a variety of applications that require reliable access every day.

FUNCTION

Corridor Lock ANSI F90

• Deadlocking latchbolt.

• Either lever operates latchbolt (except when outside lever is locked by inside pushbutton or key in outside lever). Inside lever always active.

• When locked by button, the button automatically releases when inside lever is turned or door is closed.

• When locked by key, the automatic release is made inoperative and must be manually unlocked by the key.

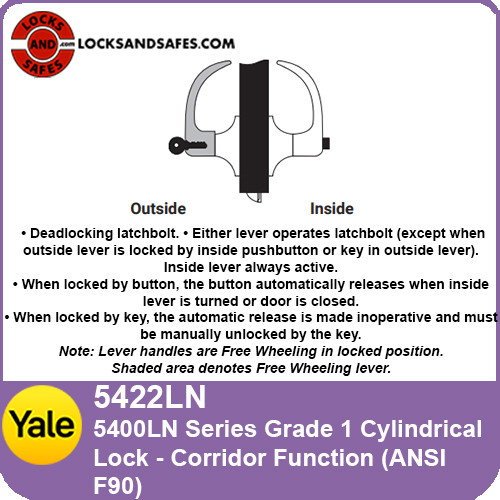

Lever handles are Free Wheeling in locked position. Shaded area denotes Free Wheeling lever.

BENEFITS

• Heavy-Duty: Rugged Grade 1 construction offers greater reliability and resists wear-and-tear

• Secure: Innovative features protect against damage and vandalism

• Versatile: Range of functions and options offer an ideal solution for a variety of commercial applications

• Easy installation: Adjustable rose allows for easy adjustment on different door thicknesses

• Strong & Reliable: ANSI/BHMA Grade 1 certification for long-life and durability

FEATURES

• Heavy duty construction features wear-resistant chassis plates, longer thread-locking thrubolts, lifetime warrantied lever return springs and stainless steel latchbolt for exceptional strength and durability

• Free Wheeling lever mechanism prevents vandalism and reduces maintenance

• Adjustable rose support plates

• Available in 3 lever designs, 24 functions (including electrified) and 12 standard finishes

• ANSI/BHMA Certified Grade 1

• ADA compliant for ease of accessibility

SPECIFICATIONS

Backset

2-3/4" standard, 3-3/4" optional

Door Thickness

Adjustable for doors 1-3/4" to 2"

Handing

Non-handed, field reversible

Latchbolt

2-3/4" backset, 1/2" throw.

Strike

ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center.

ANSI/BHMA

Certified Grade 1, ANSI/BHMA A156.2

UL/cUL

Listed for 3 hour fire doors

Windstorm

Certified, check local codes.

YALE 5400 Lever Styles

Yale 5400LN Exploded View
