When demanding the highest standard of product performance in even the toughest industrial applications, look no further than the ASSA ABLOY ACCENTRA® 5400CK Series Heavy-Duty Grade 1 cylindrical locksets.

ACCENTRA high-quality key-in-knob locksets offer the finest cylindrical lock mechanisms available. 5400CK Series locksets are assembled with superbly engineered components and constructed with high-grade materials for long-lasting reliability.

Manufactured for the industrial, commercial and institutional markets, 5400CK Series locksets feature security, dependability and versatility in attractive designs and finishes that fulfill all decorative requirements and blend with any architectural décor

FUNCTION

Utility Asylum or Institutional Lock (ANSI F87)

• Latchbolt operated by key in knob from either side.

• Deadlocking latchbolt.

• Both knobs always rigid.

APPLICATION AND LISTINGS

UL-cUL Listed for use on fire doors having a rating up to and including 3-hours.

Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and ASSA ABLOY ACCENTRA® makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

FEATURES

• Constructed of heavy-gauge cold-rolled steel

• All parts zinc plated chromate for maximum corrosion resistance

• Recommended for use under normal climactic and environmental conditions

SPECIFICATIONS

Door Thickness

Adjustable for doors 1-3/8″ (35mm) to 2″ (51mm). Factory preset to 1-3/4″ (44mm)

Backset

2-3/4″ (70mm) standard

Latchbolt

1/2″ (13mm) throw, deadlocking or plain, supplied standard

Strike

1-1/4″ (32mm) curved lip ANSI 497 supplied standard, T-Strike optional. All strikes available with optional lip lengths and wrought boxes.

Installation

ANSI/SDI A250.14

ANSI/BHMA

Certified ANSI/BHMA A156.2, Series 4000 Grade 1

Finishes

605, 613E, 630

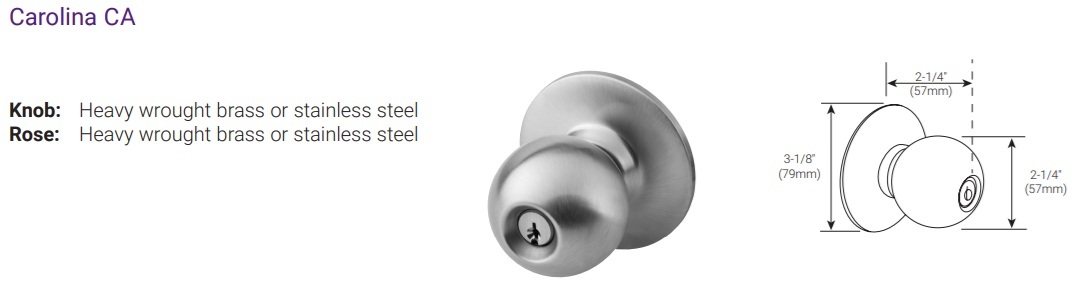

Yale 5400CK Trim Options
