Yale 5800 Series Grade 1 Cast Iron Door Closer

Yale 5800 Series Grade 1 Cast Iron Door Closer

With its modern design and adjustable operation, ASSA ABLOY ACCENTRA® 5800 Series Cast Iron Door Closers provide an attractive solution for retail, office, government and other commercial facilities. Heavy-duty and hold open arms, along with adjustable spring size, backcheck, closing and latch speed, provide a flexible and economical closer that you can trust for dependable service. The 5800 Series is certified to ANSI/BHMA Grade 1 requirements for long life and reliability.

FEATURES

• ANSI/BHMA A156.4 Grade 1 certified

• Adjustable spring sizes 1 - 6

• Cast iron closer body

• Standard and heavy-duty arms available as hold open or non-hold open

• Adjustments for backcheck, closing and latch speed

• Tri-packed for parallel, regular or top jamb installation

• Sleeve nuts and bolts provided with each closer

• Retrofit for LCN 4040XP

• Non-handed

• Plastic cover

• Delayed action; specify 5801DL (optional)

• Door weight: 250 lbs.

COMPLIANCE

• Certified for ANSI/BHMA A156.4 Grade 1

• UL10C positive pressure up to 3 hours

• Americans with Disabilities Act (ADA) compliant

BENEFITS

• Reliable: Adjustable spring power, latch and closing speeds ensure positive latching

• Flexible: Choice of standard or heavy-duty arms and adjustable spring power meets needs of any application

• Hassle-Free Retrofits: Easily replaces competitive closers

• Strong and Durable: ANSI/BHMA Grade 1 certified for long life

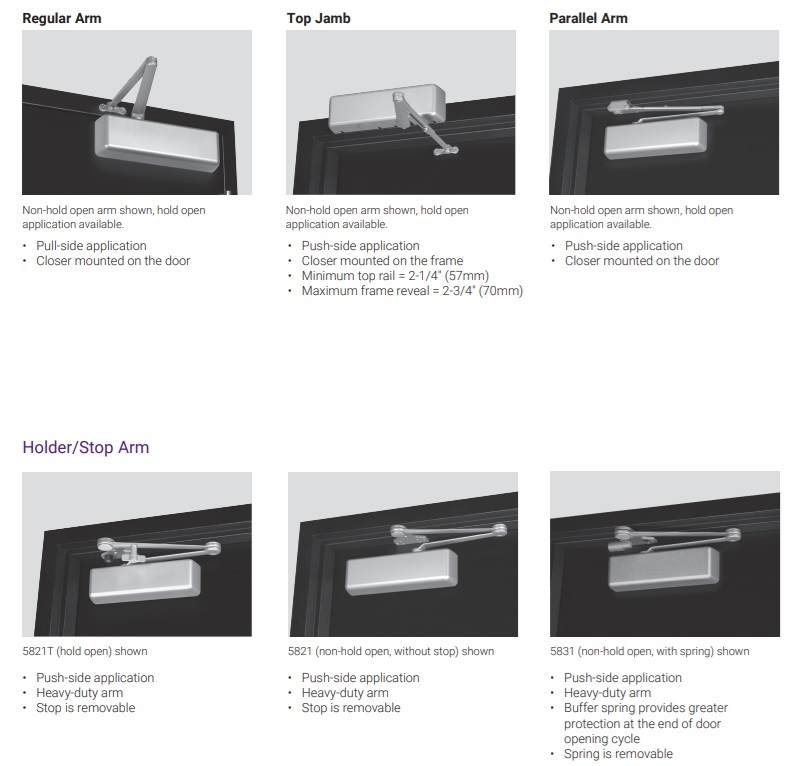

YALE 5800 Door Closer Arm Options
