Yale NTT623 | Grade 1 NexTouch Exit Trim with Touchscreen Keypad and Cylinder Override

Yale NTT623 | Grade 1 NexTouch Exit Trim with Touchscreen Keypad and Cylinder Override

FUNCTION

No Deadbolt With Cylinder Override

• For doors that require mechanical key override.

• Bolt retracted by pushbar on interior and lever on outside except when outside lever is locked.

• Key override unlocks the outside lever only.

• Deadlocking rim bolt.

COMPATIBLE EXIT DEVICES

Arrow 3880, S1250

Corbin Russwin PED/ED5200, PED/ED5200S

DETEX 10

Dorma 9300

Falcon® 25

SARGENT PE8800/8800

Von Duprin® 98, 99 ASSA ABLOY ACCENTRA™ 1800, 2100/2150, 6100/6150, 7100/7150

Note: Compatibility with Rim Device only. Please contact us for more details

OPTIONS

DPS - Door Position Switch

An Auxiliary Door Position Sensor (DPS) must be installed with the lock to enable both Escape Return and Privacy functions.

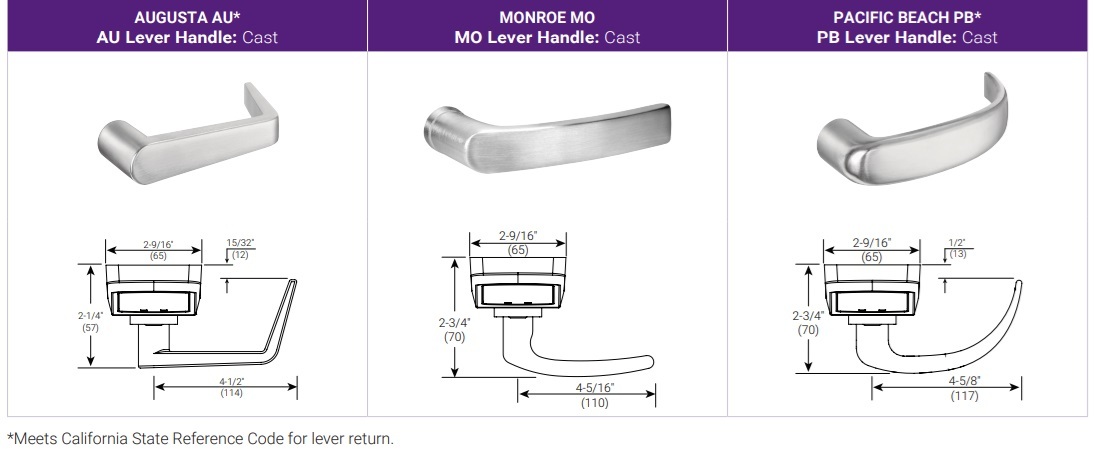

LEVERS

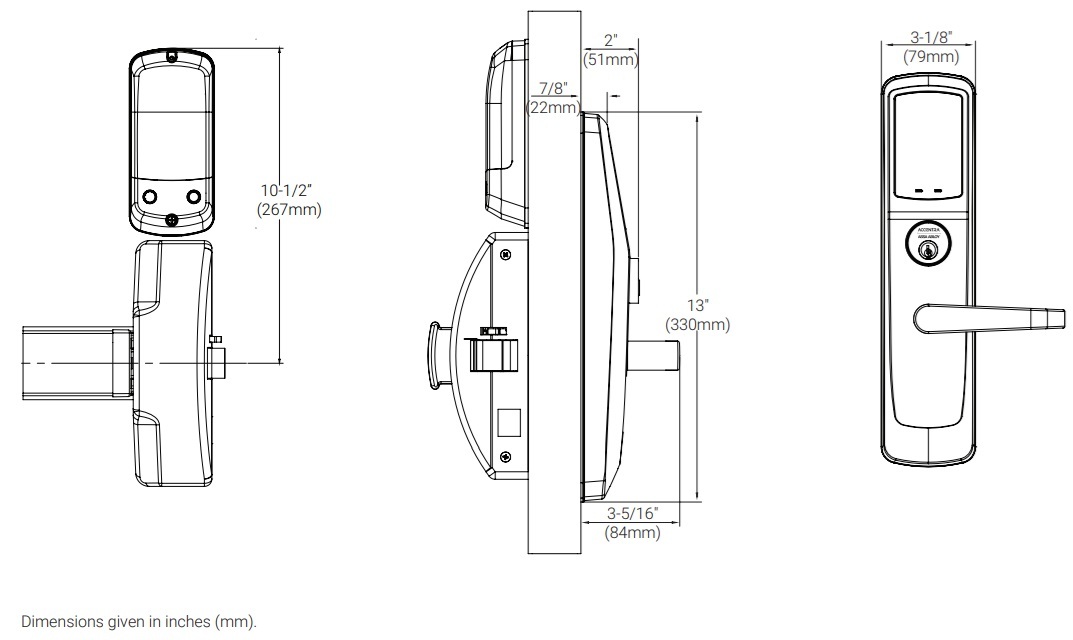

DIMENSIONS

CERTIFICATIONS

ADA

The nexTouch® Series lever design meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities, all requiring ease of accessibility.

ANSI/BHMA

nexTouch® exit trim certified ANSI/BHMA A156.3, Grade 1.
