For more heavy-duty applications, the SL8800 Series Mortise Lock offers an extra measure of security. The SL8800 is ideal for situations where heavy abuse or vandalism might be a concern.

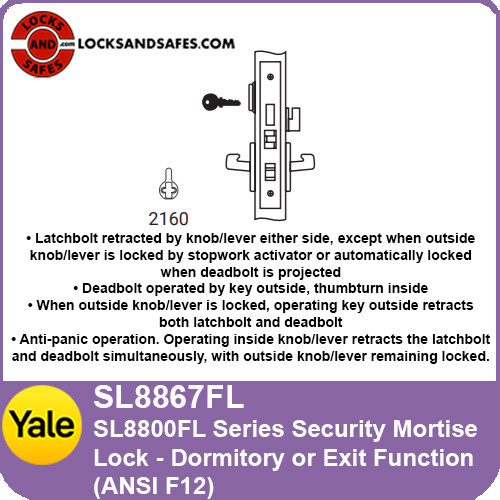

FUNCTION

Dormitory or Exit Function (ANSI F12)

• Latchbolt retracted by knob/lever either side, except when outside knob/lever is locked by stopwork activator or automatically locked when deadbolt is projected

• Deadbolt operated by key outside, thumbturn inside

• When outside knob/lever is locked, operating key outside retracts both latchbolt and deadbolt

• Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, with outside knob/lever remaining locked.

FEATURES

• Heavy duty escutcheon trim that is flat against the door to resist damage and vandalism

• Lever attached directly to escutcheon for added security

• Thrubolted security head screws offer added protection

SPECFICATIONS

Armor Front

8" x 1-1/4"

Backset

2-3/4" only

Case

Wrought steel, zinc dichromated

Deadbolt

1" throw,  cast stainless steel.

Handing

Field reversible

Hubs

3/8" solid steel, fine-blanked and heat treated for additional strength

Latchbolt

3/4" throw, stainless steel one-piece anti-friction

Strike

1-1/4" (model 2815) curved lip strike standard, please contact us for other strikes.

YALE STANDARD LEVER ON ESCUTCHEON
