Adams Rite 4550 MS® Deadlock Lever

$159.00 - $189.28
(No reviews yet) Write a Review
Weight:
3.00 LBS
Width x Height x Depth:
2.00 (in)

 x

3.00 (in)

 x

9.00 (in)

Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !

Shipping:
Calculated at Checkout

Note: Left Hand Handing is the same as Right Hand Reverse Handing and Right Hand Handing is the same as Left Hand Reverse Handing. See handing chart for clarification. See our Door Handing guide for more information.

Adams Rite 4550 MS® Deadlock Lever

The 4550 MS® Deadlock Lever easily unlocks an MS® Deadlock with approximately three pounds of downward force. The spring-loaded lever relocks with an upward motion.

Function

Easy unlocking of most MS Deadlocks by approximately 3 lbs [1.36 kg] downward force on a 3" [76.2 mm] lever. Lever is spring loaded to horizontal, relocks with upward motion. Indicator signals lock status. Can be installed in place of existing key cylinder or cylinder type thumbturn on inside of door. 4550 Deadlock Lever not compatible with 7/8" [22.2 mm] backset locks.

Operation

Rotate lever downward 90° to unlock. When released, lever returns to horizontal. Rotate lever upward 90° to relock. Key operation from outside is not affected. Clutching action prevents damage to internal components.

Features

Housing

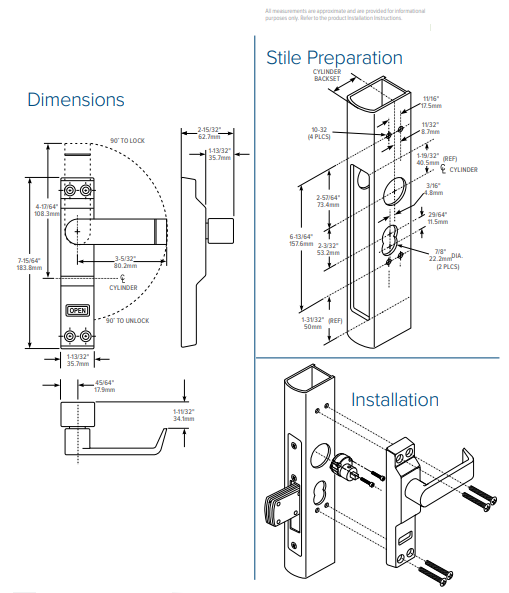

Aluminum casting is 1-3/8" wide x 7-1/2" long x 1" deep [34.9 mm x 190.5 mm x 25.4 mm].

Lever

3" [76.2 mm] long aluminum with end-return design offers comfortable grip to lock or unlock.

Indicator

Words “LOCKED" in red letters or “OPEN" in green letters appear on white background when bolt is thrown or retracted respectively. Indicator is driven by lock bolt itself.

Stop Clearance

Lever housing projects 11/16" [17.5 mm] forward of cylinder backset centerline. Depending on height of door stop and width of door/ jamb gap, it may be necessary to modify the stop to clear the housing. For fin type stops, this is easily accomplished. Hollow stops may preclude use of lever. Please contact factory for more detailed information.

Compatible Locking Devices

Any MS® pivoted bolt deadlock including “Schoolhouse” versions can be fitted with the 4550 including MS1850S, MS1950.

Derivative units such as 1870 or 1870HM, flushbolts that bolt into threshold are also operable by the 4550 lever.

Not compatible with MS+1890 Deadlock/Deadlatch or 2190 Interconnected Deadlock/Deadlatch or with 7/8" [22.2 mm] backset locks.

Standard Package

Individually boxed with mounting hardware and drive pins for both single point and threshold bolt-equipped locks.

Shipping weight

3 lbs [1.36 kg].Housing

Options

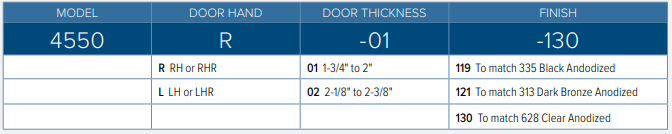

Available in choice of powder coat 119 to match 335 Black anodized, 121 to match 313 Dark bronze anodized, and 130 to match 628 Clear anodized.

Adams Rite 4550 Finish | Adams Rite 4550 MS Deadbolt Lever Finish
Click here for our Definitive List of Door Hardware Finishes

Ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing.

Adams Rite 4550 MS Deadlock Lever

Adams Rite Lever Product Selection Guide

Handle TypeCompatible Locking DeviceLink To Part #

Lever

Adams Rite 4550 Lever

Adams Rite Deadlocks including MS1850S, MS1950, 1870 and 1870HM 4550

Lever

Adams Rite 4560 Lever

Adams Rite 4300, 4500, 4900 Deadlatches 4560
Adams Rite MS+1890 Deadlock/Deadlatch 4560

Turn

Adams Rite 4565 Handle with Turn

Adams Rite 4300, 4500, 4900 Deadlatches 4565
Adams Rite MS+1890 Deadlock/Deadlatch 4565

Straight

Adams Rite 4568 Handle with Straight Lever

Adams Rite 4300, 4500, 4900 Deadlatches 4568
Adams Rite MS+1890 Deadlock/Deadlatch 4568

Return End

Adams Rite 4569 Handle with Return End Lever

Adams Rite 4300, 4500, 4900 Deadlatches 4569
Adams Rite MS+1890 Deadlock/Deadlatch 4569

DOWNLOADS

Click here to download Adams Rite 4550 Catalog
Click here to download Adams Rite 4550 Installation Instructions
Click here to download Adams Rite Price List
