DTX-4111M - Access Control System for Single Door

• Features
• Technical Info
• How to Order
• Downloads

DTX-4111M - MULTI-DOOR ACCESS SYSTEM WITH KEYPAD AND USB OR NETWORK (FOR SINGLE DOOR)

The Multi-Door access system with software is “access simplified”. The system is powerful and easy to install and program for small to mid-sized applications. It provides a secure and trusted access control system that uses proven hardware architecture. System management from a PC can be either over a LAN/WAN connection or through a RS485 serial connection. All individual door access decisions and transaction events are stored at the module. Programming is done via LAN, WAN, or RS-485, using the Hub Manager Professional Software. System expansion is made simple with the modular design of the two available configurations (DTX-4004 or DTX-4001). The DTX-4004 provides the simplest expansion of one to four doors per cabinet when the system needs to be installed in a central location. The DTX-4001 configuration (single door control system) is ideal for applications where the doors are far apart and/or the control is located at the door

Access Control System for single door, with (1) DTX-4110 Keypad, (1) DTX-4001 controller with software, and transformer with either USB, Network Desktop mount (NDESK) or Network Can mount (NCAN). Expand system by adding (1 door) DTX-4001 or (4 doors) DTX-4004 controllers and added Keypads. Power for Keypads sold separately

BENEFITS

• Affordable multi-door security application in new or exisiting structures
• Fast and reliable communications
• Dependable service and security in all environments
• Multi-user capabilities
• Flexible programming capable
• Easy installation
• Controls unauthorized access/ egress

FEATURES

• DTX-410X (X denotes # of doors)
• 2000 users per door
• Network up to 16 doors
• 2000 transaction storage per door
• First-In auto unlock
• 8 time zones per door
• 15 Single date holidays per door
• 15 Block date holidays per door
• Error Lockout
• Supports adjustable Daylight Savings Time
• Programmable with Hub Manager Professional Software 7.2 or higher
• Serial connection made with USB to 485 converter
• Single gang flush mount design
• Keypads: Backlit hardened keys, durable metal (with braille) keys or mullion mount backlit keys
• Polycarbonate trim
• Conformal coating
• Key press feedback via sounder and yellow LED
• Built-in assignable sounder
• Bi-color Red/Green LED indicates relay status
• Indoor/outdoor use
• 3 year warranty
• UL 294 Listed

Top

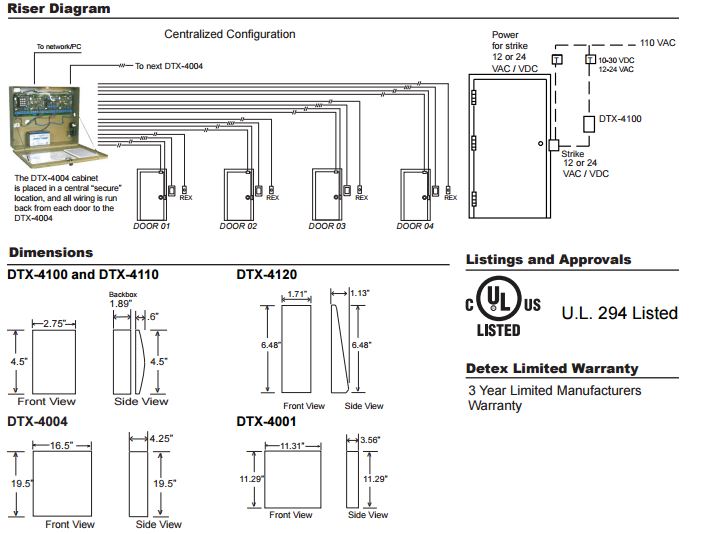

TECHNICAL INFORMATION

• Relay Contact Rating for DTX-4100 or DTX-4110: 2A@ 30VAC/DC (Main & Aux.) and Relay Contact Rating for DTX-4120: 3 - 1 amp SPDT relays in controller
• Request to Exit Input
• Independent Outputs
• Configurable Outputs
• Wiegand Outputs
• Operating Voltage: 16.5 VAC 40 VA Class 2 Transformer (Plug-In Transformer included)
• Current Requirements: 100mA (backplane & 1 module) add 40mA for each module / DTX-4004 - Current Requirements: 120mA
• Alarm shunt, door ajar, forced door outputs: 12-24 VAC/DC 1mA each
• Temperature tolerance: -20F to 130F
• DTX-4004 / DTX-4001: Indoor use only

Top

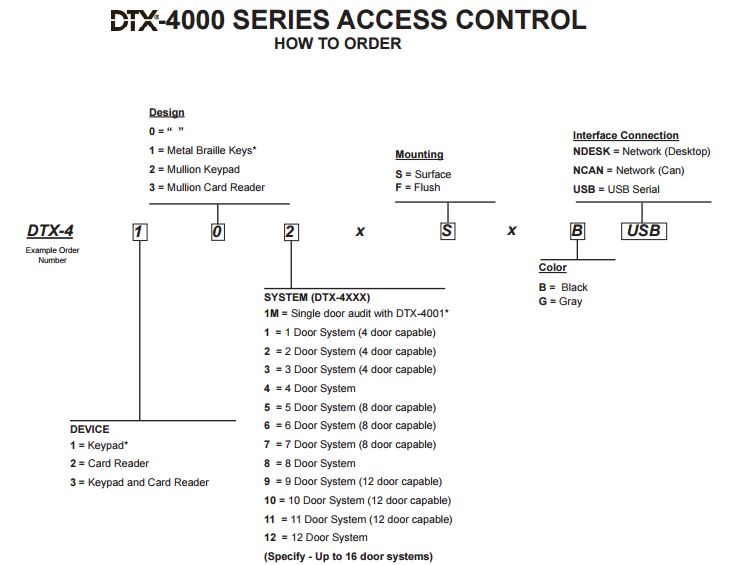

HOW TO OREDR

Top

DOWNLOADS

DTX-4111M Catalog
DTX-4111M Installation Instruction
Listed Price
