Norton 7500 CloserPlus Door Closer | Grade 1 Door Closer Size 1 to 6

Norton 7500 CloserPlus Door Closer | Grade 1 Door Closer Size 1 to 6

FEATURES

• Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting

• Non-handed

• Rack-and-pinion design

• Cast aluminum body

• Adjustable spring sizes 1-6

• Door weight: 250 lbs.

• 2-1/8" (54mm) projection

• 1-1/2" (38mm) diameter piston

• 5/8" (16mm) diameter pinion journals

• Standard, separate and independent, latch, sweep and backcheck intensity valves

• Backcheck positioning

• Staked valves

• Retrofit plates

• NorGlide® fluid

• Molded plastic cover

• All standard arm applications allow doors to swing 180°, conditions permitting

• Self-drilling screws

• Full-size template

CERTIFICATIONS

• ANSI/BHMA A156.4, Grade 1

• ANSI/BHMA A117.1

• Americans with Disabilities Act (ADA) Compliant

• Environmental Product Declaration (EPD)

• Health Product Declaration (HPD)

• GreenCircle Environmental facts

• UL10C positive pressure up to 3 hours

• UL-cUL listed

• Manufactured in an ISO9001, ISO14001 facility

Norton 7500 Door Closer Cutaway View

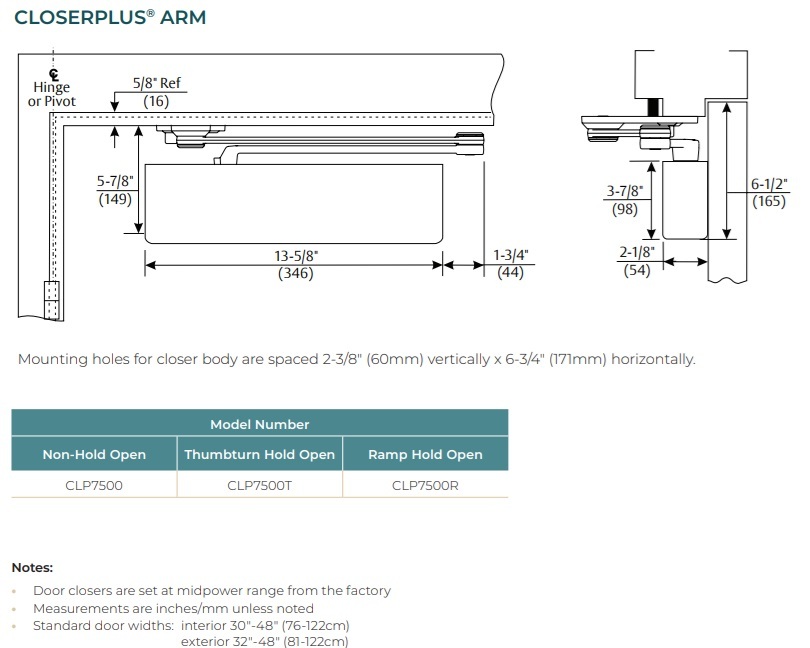

Norton 7500 Door Closer CloserPlus Arm

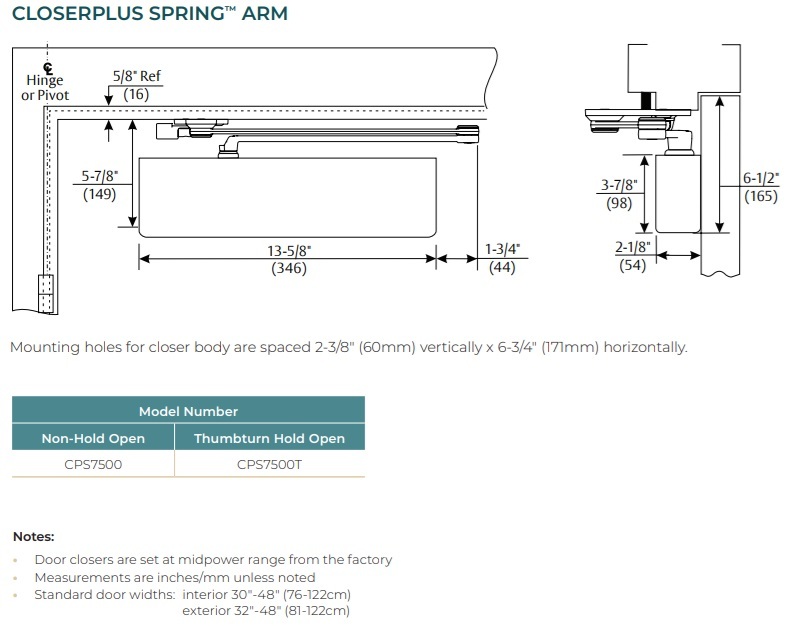

Norton 7500 Door Closer CloserPlus Spring Arm
