Adams Rite 4560 Series Deadlatch Handles for 4300, 4500, 4900 Series Deadlatches with Lever

$48.97 - $67.45
(No reviews yet) Write a Review
Weight:
2.00 LBS
Width x Height x Depth:
2.00 (in)

 x

3.00 (in)

 x

9.00 (in)

Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !

Shipping:
Calculated at Checkout

Note: Left Hand Handing is the same as Right Hand Reverse Handing and Right Hand Handing is the same as Left Hand Reverse Handing. See handing chart for clarification. See our Door Handing guide for more information.

Adams Rite 4560 Series Deadlatch Handles

The 4560 Series Deadlatch Handles easily unlock the 4300, 4500 and 4900 Series Deadlatches. These handles fit solidly into the cylinder hole of Adams Rite deadlatches.

Function

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles' escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull. 4560 handles feature an ADA compliant lever shaped to fit the hand.

Operation

Rotate lever downward 90° to unlock. When released, lever returns to horizontal. Rotate lever upward 90° to relock. Key operation from outside is not affected. Clutching action prevents damage to internal components.

Features

Handle

Handle of cast aluminum.

ADA compliant lever is shaped to fit the hand, with a concave thumb-rest portion that tends to keep knuckles and thumb safely away from the jamb, even on a short backset narrow stile.

Escutcheon

A 1/4" [6.4 mm] square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.

4560 has a sloping 1-3/8" x 4" [34.9 mm x 101.6 mm] escutcheon, designed to match the clean lines of a narrow stile door.

Cam Plug

Secured in latch body by cylinder set screw, the plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.


Standard Package

Individually packaged with mounting hardware and cam plug handed LH or RH as specified.

Shipping Weight

2 lbs [0.91 kg].

4560  is also available bulk-packed in cartons, up to 100 per carton. Please contact us for more information.

Options

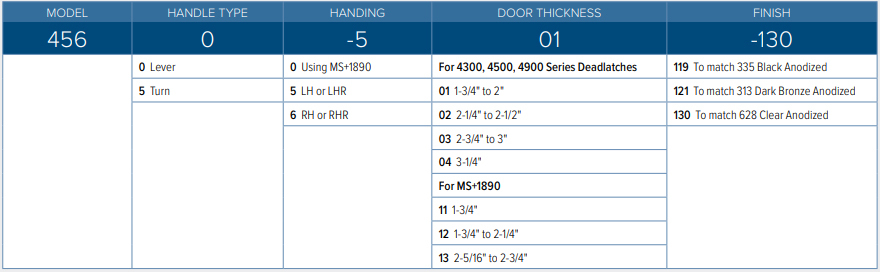

Ordered for left hand (LH) or right hand (RH) door, but is easily reconfigured in the field to accommodate either door swing.

Standard handles are for 1-3/4" [44.5 mm] thick doors. Please contact us for doors up to 3-1/4" [82.6 mm] available by special order.

Available in choice of powder coat 119 to match 335 Black anodized, 121 to match 313 Dark bronze anodized, and 130 to match 628 Clear anodized.

Adams Rite Door Hardware Finishes | Finishes for Adams Rite 4560 Deadlatch Handle | Adams Rite Lever
Click here for our Definitive List of Door Hardware Finishes

Adams Rite 4560 Deadlatch Handle Dimensions

Adams Rite 4560 Deadlatch Handle Installation

DOWNLOADS

Click here to download Adams Rite 4560 Catalog
Click here to download Adams Rite 4560 Installation Instructions
Click here to download Adams Rite Price List
