Securitron DK-26 Weatherproof Digital Keypad System

Securitron DK-26 Weatherproof Digital Keypad System

The DK-26 digital keypad system provides medium/ high security control of electric locks in one- or two-door applications where doors have the same control needs.

The fully weatherproof, rugged stainless steel keypad can be mounted in most outdoor environments. Encased in a separate enclosure for secure installation, the full-featured, easy-to-program, DK-26 is ideal for narrow stile applications.

FEATURES

• Cast stainless steel with 11 EPDM rubber keys

• Weatherproof and vandal resistant

• Mounts on a narrow mullion

• Audible keystroke echo

• True 10-key operation (keys are not paired)

• 59 users with multiple entry codes

• User code and hard code disable feature

• Passage Mode and Lockout Mode

• Request to exit (REX) input

• 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable

Certifications

• CE: EN 50091-1, EN 61000-6-2 Approved

Electrical

• 12 VAC/VDC: 7 mA at rest; 160 mA active

• 24 VAC/VDC: 20 mA at rest; 190 mA active

Operating Temperature

• CPU: 32˚ to 158˚ F [0˚ to 70˚ C]

• Keypad: -22˚ to 158˚ F [-30˚ to 70˚ C] Indoor or Outdoor use

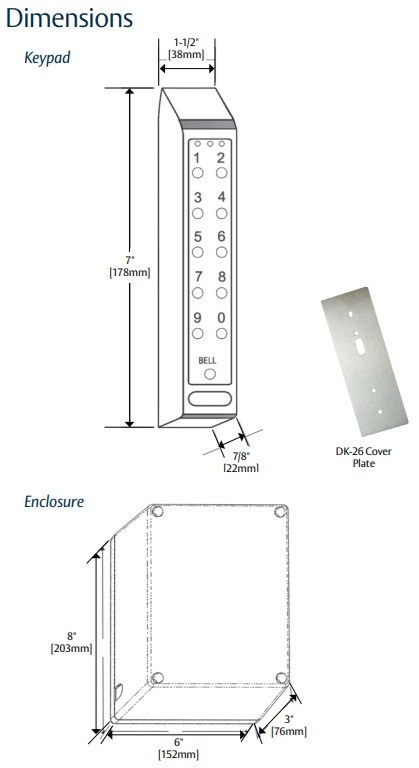

Securitron DK-26 Dimensions | Securitron DK26 Dimensions
