Adams Rite MS1861-01 Bottom Rail Deadbolt - One-Point Deadlock, Vertical Bolt Operation only

$135.00
$98.55
(You save $36.45 )
(No reviews yet) Write a Review
Weight:
3.00 LBS
Width x Height x Depth:
2.00 (in)

 x

3.00 (in)

 x

9.00 (in)

Don't see the quantity, finish, or function you are looking for? We can mix, match and "BUILD" the item option set you are looking for - Just call us at 860-537-1328 and our sales staff will assist !

Shipping:
Calculated at Checkout

Adams Rite MS1861-01 Bottom Rail Deadbolt - One-Point Deadlock, Vertical Bolt Operation only

The Adams Rite MS1861 -01 Bottom Rail Deadbolt provides maximum security with MS deadbolt locking mechanism. It utilizes hardened steel bolts for the limited space of ultra-narrow stile doors.

Function

The Adams Rite MS1861 -01 lies horizontally in the bottom rail of ultra-narrow stile doors which have insufficient vertical space for a lock, or tempered glass doors which have no stile at all. The hardened steel cylindrical bolts allow simple drilled strike holes of a relatively small size to minimize the nuisance and danger presented by some threshold strikes in collecting debris or snagging on high-heeled shoes.

Operation

360° turn of key or thumbturn projects or retracts bolt(s). Key can be removed only when bolts are in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. The Adams Rite MS1861 -01 lock accepts cylinder from either or both sides.

Features

Cylinder Backset

Minimum backset is approximately 2-1/4" [57.2 mm] for the Adams Rite MS1861 -01 configuration with vertical bolt only. Cylinder center is 1-7/8" [47.6 mm] above bottom edge of door.

Case

Measures 1" x 6" x 1-13/16" [25.4 mm x 152.4 mm x 46.0 mm]. Steel with corrosion-resistant plating.

Bolt

3/8" [9.5 mm] diameter. Stainless steel vertical threshold bolt has 13/16" [20.6 mm] throw. Hardened steel horizontal bolt has 1-1/8" [28.6 mm] throw.

Strike

In metal installation, 7/16" [11.1 mm] drilled holes in threshold are required.

Finishes

Click here for our Definitive List of Door Hardware Finishes

Standard Package

Individually boxed with mounting screws. Cylinder and/or thumbturn available separately. If required, tube spacers are available separately.

Shipping weight

Adams Rite MS1861 -01: 1-3/4 lbs [0.79 kg]

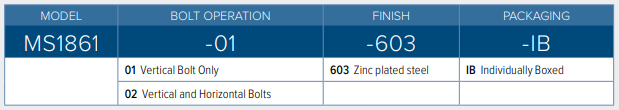

Options

Vertical bolt only (-01)

Adams Rite MS1861 Dimensions



Adams Rite MS1861 Bottom Rail Deadbolt Rail Preparation
